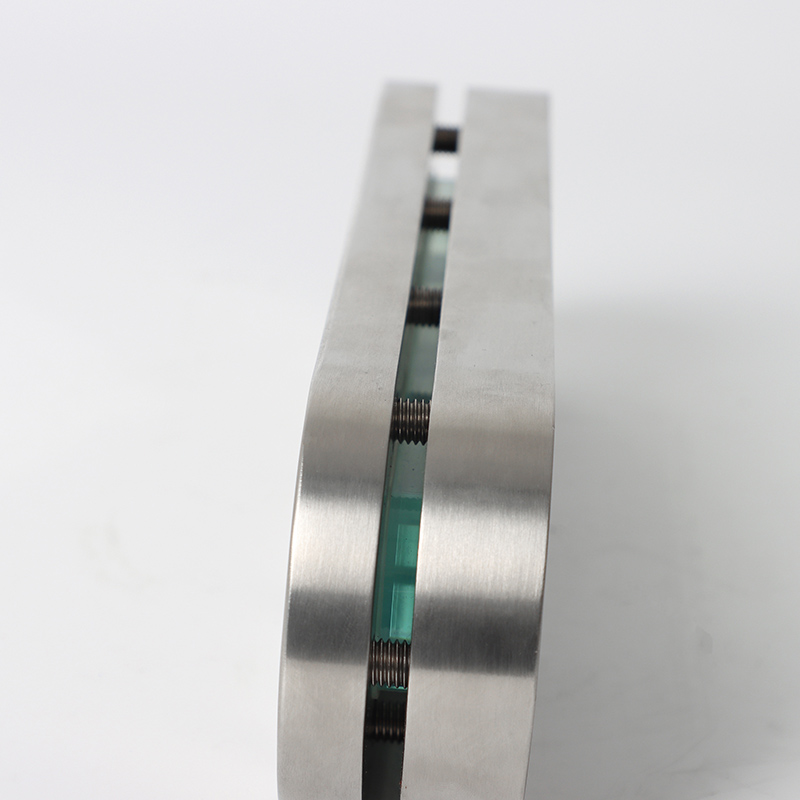

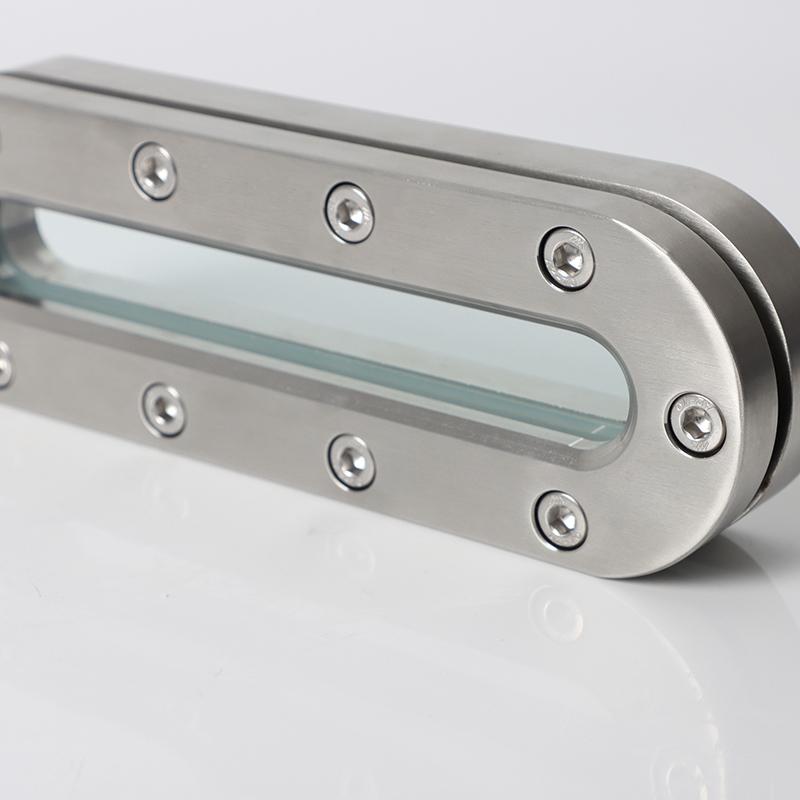

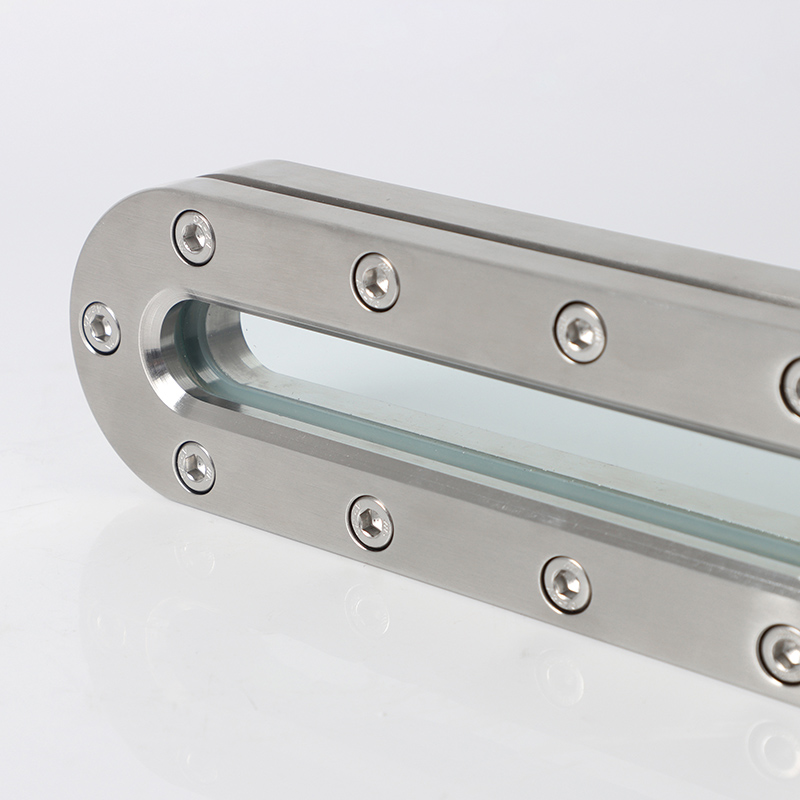

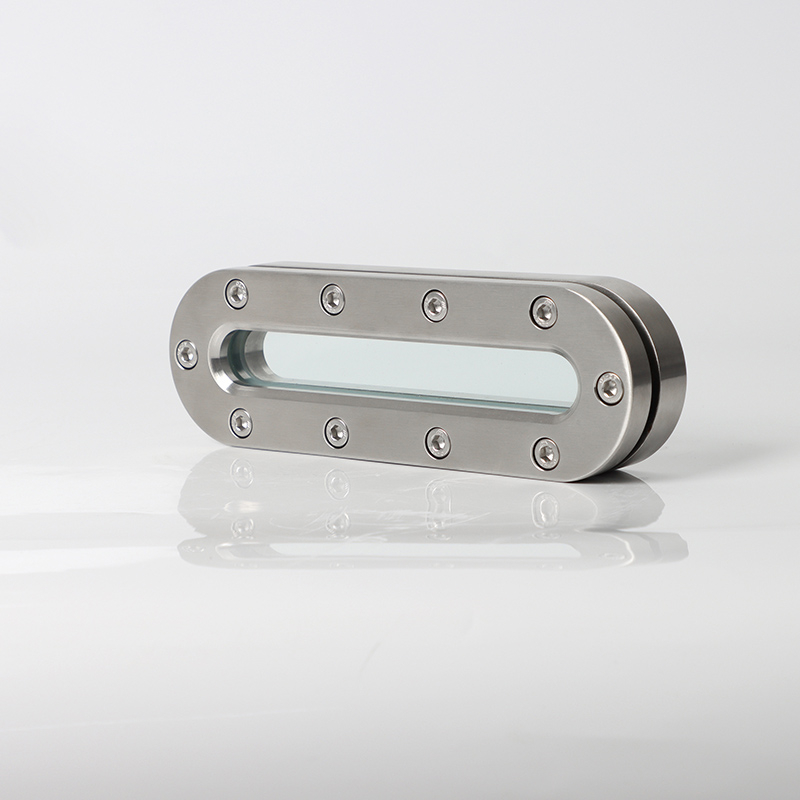

Flange Sight Glass
SDFL
Application: Visual Flow Monitoring
Process Observation
(1)Chemical reactors: Monitoring reaction color/foam level.
(2)Food processing: Verifying fluid clarity (e.g., dairy, beverages).
(3)Pharmaceutical: Checking CIP (Clean-in-Place) completion.
Leak Detection & Maintenance
(1)Pump discharge lines: Visual confirmation of fluid movement.
(2)Filter housings: Inspecting filter clogging.
Characteristics
Dual-Function Design
(1)Integrates sight glass (borosilicate/quartz) between two flanges.
(2)Gasket-sealed with clamp compression.
Safety Features
(1)Protective shatter guards (stainless steel mesh).
(2)Redundant sealing with PTFE/graphite gaskets.
Warning:Never use with hazardous fluids – Glass failure causes toxic release!
