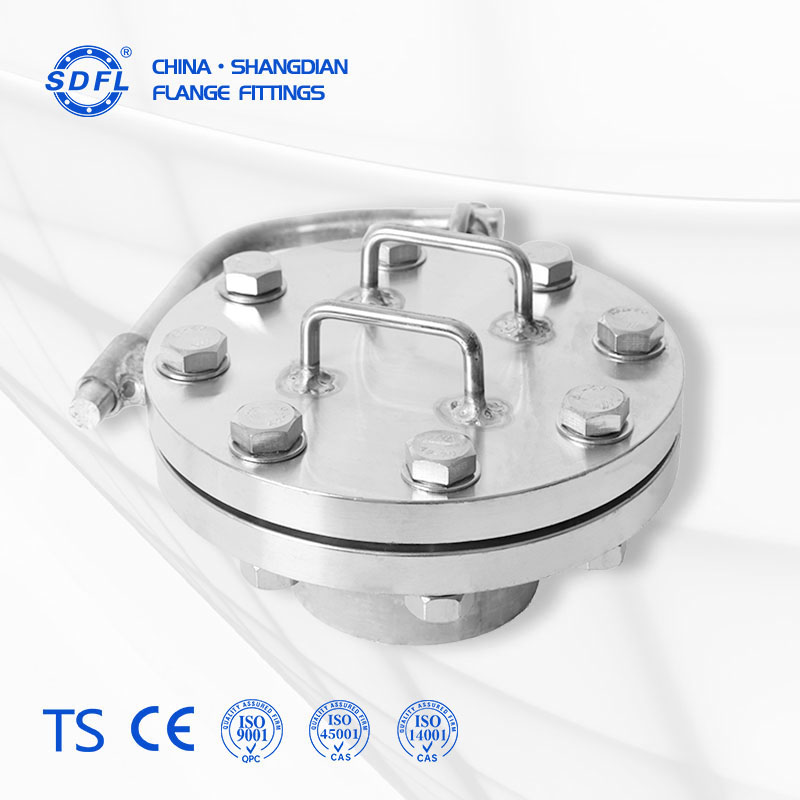

ASME VIII Div.1 DN600 600# Stainless Steel Manway

Product Overview & Compliance Standards for ASME VIII Div.1 DN600 600# Manway

Basic Product Information

Quantity:1 Model: Manway Brand: SDFL

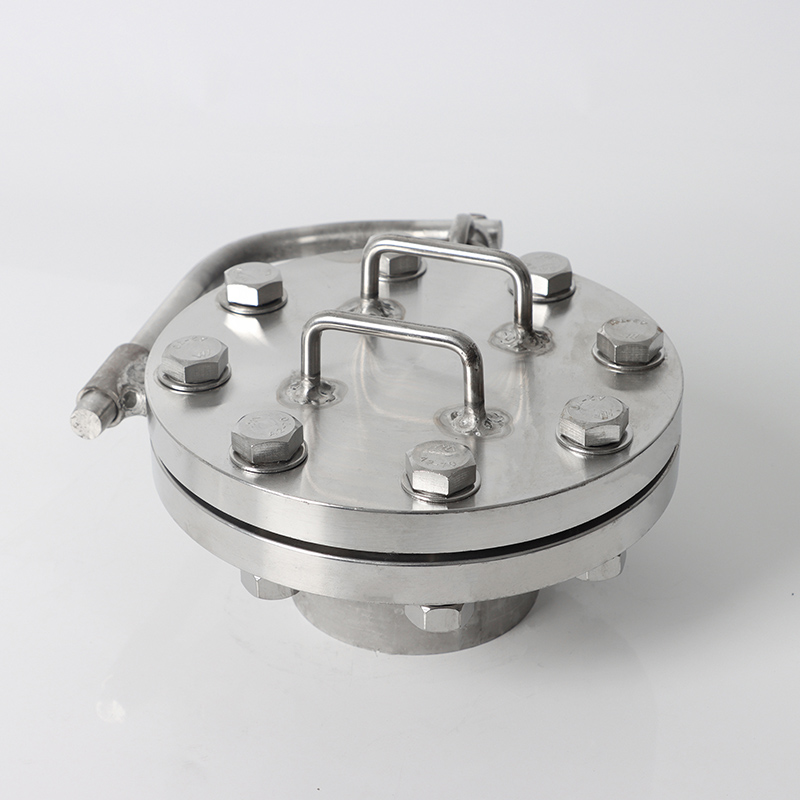

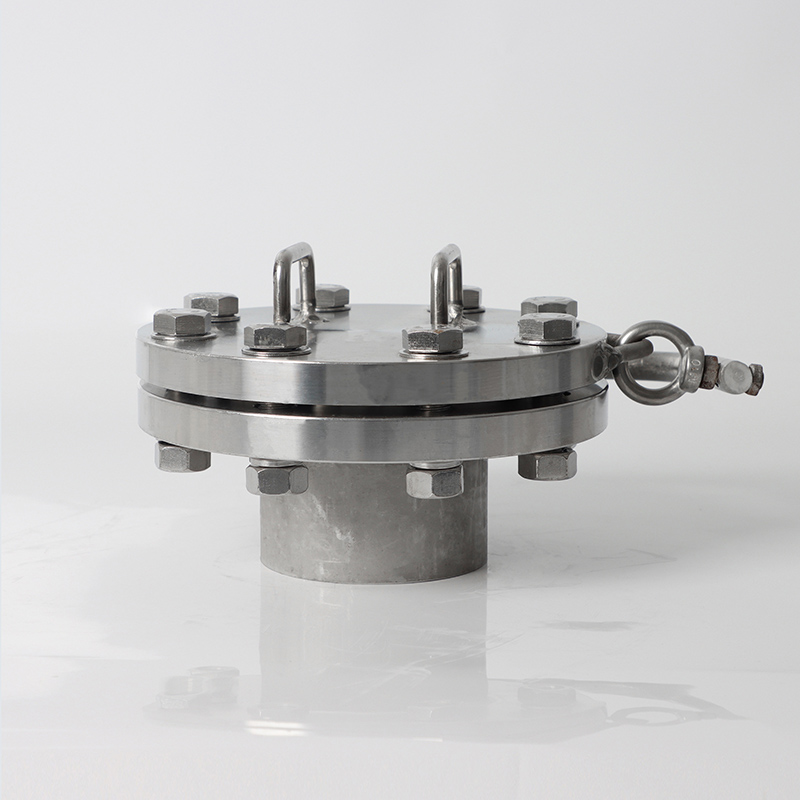

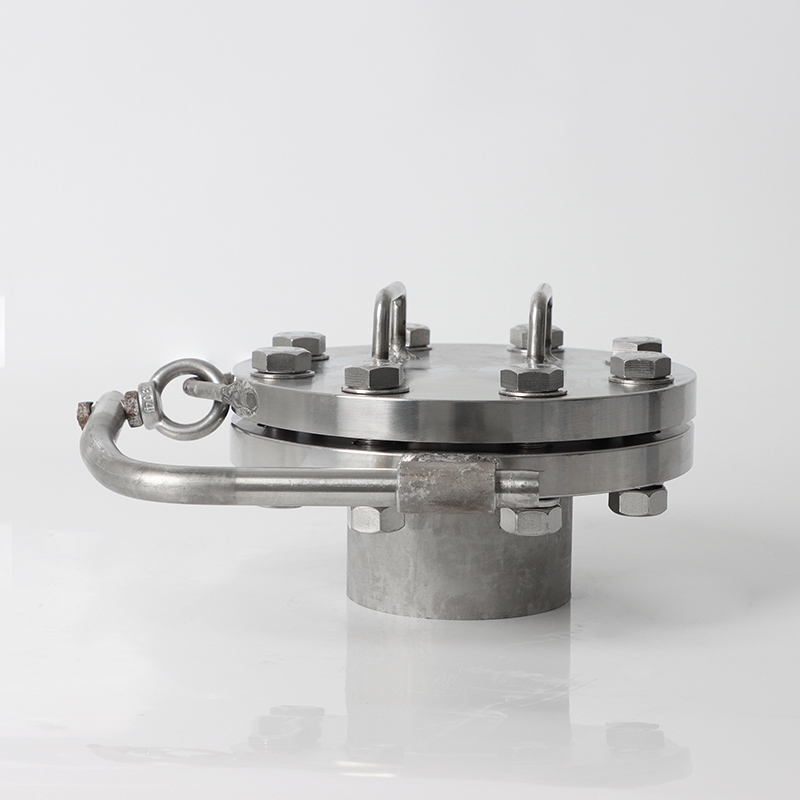

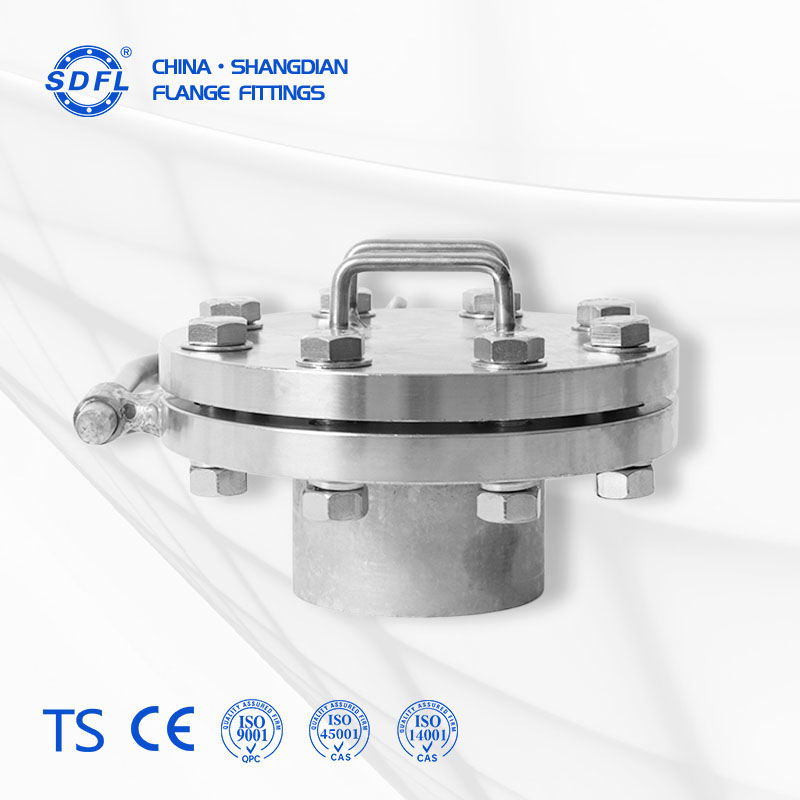

This stainless steel manway is designed for pressure vessel and storage tank access, with a nominal diameter of DN600 and a pressure rating of Class 600. It serves as a standard access point for equipment inspection, maintenance, and material loading across multiple industrial sectors. The product is manufactured through forging and precision machining processes, with dimensional inspection and pressure testing conducted before delivery.

International Conformance Standards

Material Grades & Working Conditions for Stainless Steel Manway

Available Material Specifications

Material Adaptable Working Conditions

Each material grade matches specific operating environments for targeted equipment matching. 304L applies to general atmospheric and mild corrosive environments, with acceptable formability and weldability. 316L provides improved chloride corrosion resistance for common chemical processing scenarios. Duplex 2205 offers higher strength and chloride tolerance for environments with 5000ppm chloride ion content. 254 SMO and UNS N10276 are designed for highly corrosive industrial conditions.

Design Features & Performance Parameters for ASME Standard Manway

Pressure-Bearing Head Design

The manway adopts an elliptical head structure, which conforms to ASME VIII Div.1 stress calculation specifications. Under the same pressure rating, this design requires lower material thickness than flat cover structures, optimizing material usage while maintaining pressure-bearing capacity. The head undergoes hydrostatic pressure testing according to standard procedures before delivery.

Quick-Opening Mechanism

A hydraulic quick-opening structure is available for this manway model. Under standard operating conditions, the opening and closing process can be completed within 60 seconds, reducing on-site operation time compared with traditional bolted manway structures. The opening mechanism is equipped with safety interlock components to prevent misoperation under pressurized conditions.

Sealing System Parameters

The manway is fitted with a metal-jacketed gasket, which supports working temperatures up to 550°C. Under standard laboratory test conditions, the leakage rate of the sealing system reaches 10⁻⁶ mbar·L/s. For cryogenic applications, metal O-ring seal configurations are available to adapt to low-temperature operating environments.

Hygienic Grade Surface Finish

For pharmaceutical and food processing applications, the product contact surface can be processed to a roughness of Ra ≤0.4μm, conforming to EP hygienic requirements and 3-A sanitary standards. The internal structure design avoids stagnant zones, supporting standard clean-in-place procedures.

Industrial Application Scenarios for Pressure Vessel Manway

For crude oil and product storage tanks with DN ≥600mm diameter, this manway provides standard access for inspection and maintenance, and can be matched with explosion-proof vent components. For high-pressure chemical reactors with PN40 rating, PTFE-lined configurations are available to adapt to corrosive catalyst loading processes. For bioreactors and sterile tanks in the pharmaceutical sector, the quick-opening structure reduces contamination risk during opening procedures. For LNG storage tanks operating at -196°C, the manway with metal O-ring seals maintains stable sealing performance under cryogenic conditions. For nuclear island pressure vessel maintenance access, the product conforms to ASME III ND standards with radiation-resistant material options.

FAQ About ASME Manway Procurement

What pressure class does this DN600 manway match?

This standard manway model is designed for Class 600 pressure rating, matching ASME VIII Div.1 pressure calculation rules. Custom pressure class configurations can be provided for project-specific requirements.

Are custom material options available for this manway?

Yes, material options include the grades listed in the material specification table. Custom material requirements for special working conditions can be submitted for evaluation by the engineering team.

What quality certifications apply to this product?

The production facility holds ISO 9001, ISO 14001, ISO 45001, TS, and CE certifications. Products can be supplied with third-party inspection reports according to commercial procurement requirements.

What is the lead time for commercial procurement orders?

Lead time varies based on order quantity and configuration requirements. Standard stock models have shorter delivery cycles, while custom configured manways require production scheduling. Specific lead time details will be provided with formal quotations.

Procurement & Customization Support for Industrial Manway

This manway product supports both standard and custom configurations for commercial procurement. Customizable parameters include material grade, opening mechanism type, sealing form, surface finish, and connection flange standard. Bulk orders for engineering projects are supported, with factory-direct supply and corresponding quality documentation. For detailed quotation and technical confirmation, contact the sales team with specific project parameters.
