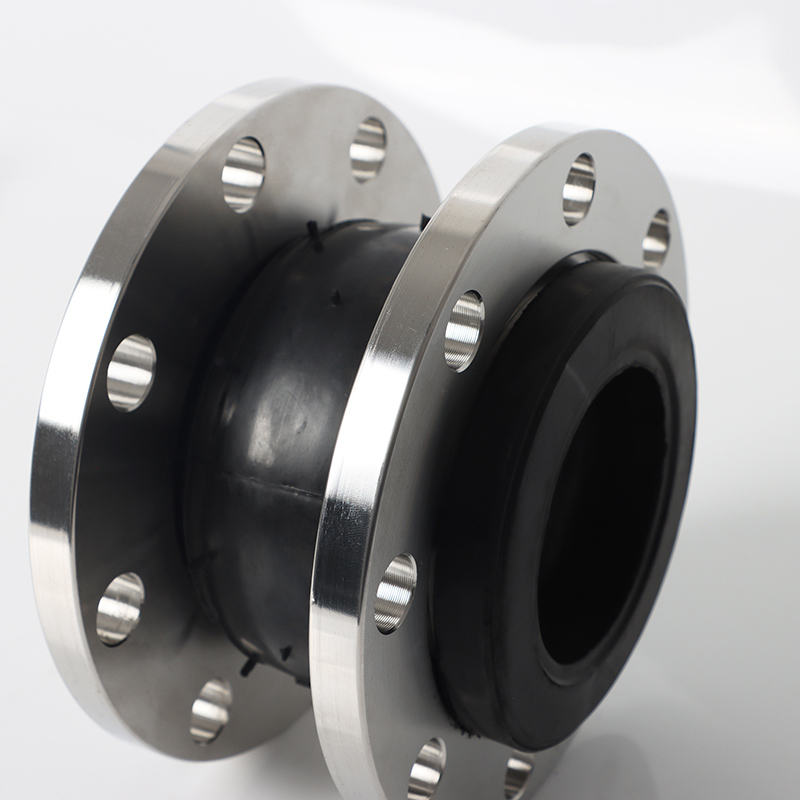

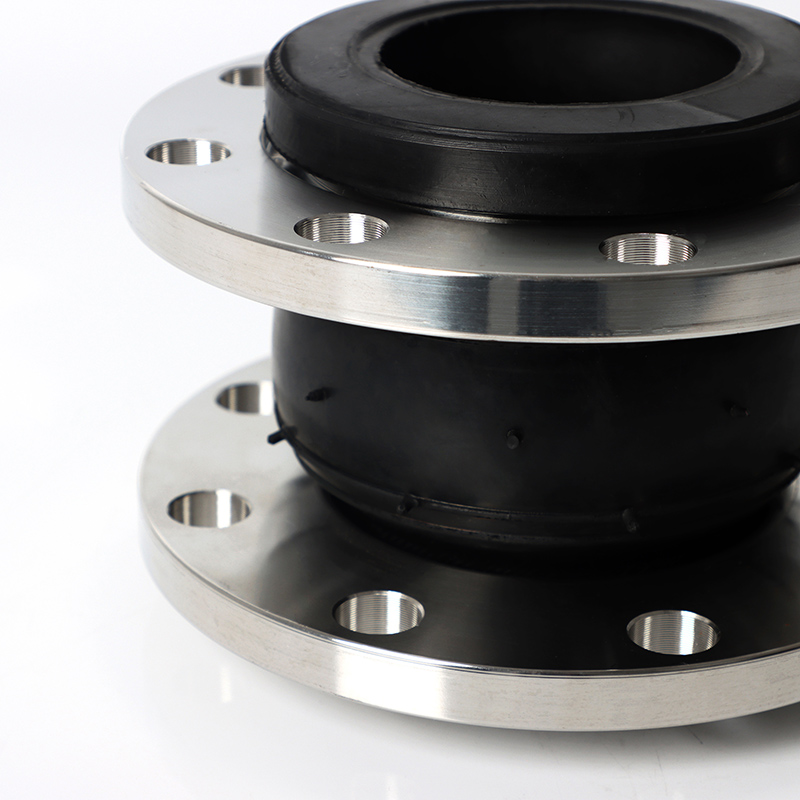

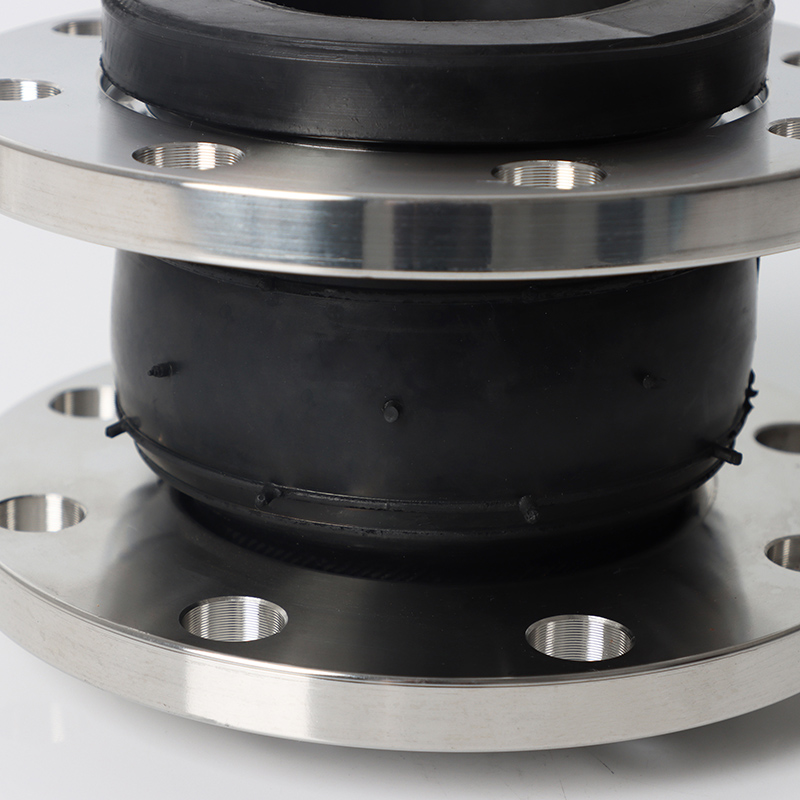

Flexible Joint Flange
SDFL
Application Scenarios
Marine & Offshore: Ship engine exhaust systems, subsea pipeline connections.Compensate pipe misalignment from hull flex or wave impact.
Oil & Gas: PSO risers, wellhead jumpers.Absorb platform motion/thermal stress to prevent flange leaks.
Chemical & Power Plants: Reactor inlet/outlet connections, steam turbine piping.Isolate equipment vibration to protect sensitive instruments.
Construction & Municipal: Skyscraper water/fire lines, seismic zone pipelines.Seismic design allows ±50mm movement to prevent pipe rupture.
Key Features
1.Multi-directional compensation (±15mm, ±3° axial/lateral/angular)
2.Vibration damping (80% energy absorption via rubber/metal bellows)
3.Bolt-on installation (no welding), 50% faster deployment
Full material test reports (MTR)
ISO, API, PED certificates
On-time delivery
OEM & custom sizes
Small order & sample orders accepted
