PL Flange
SDFL

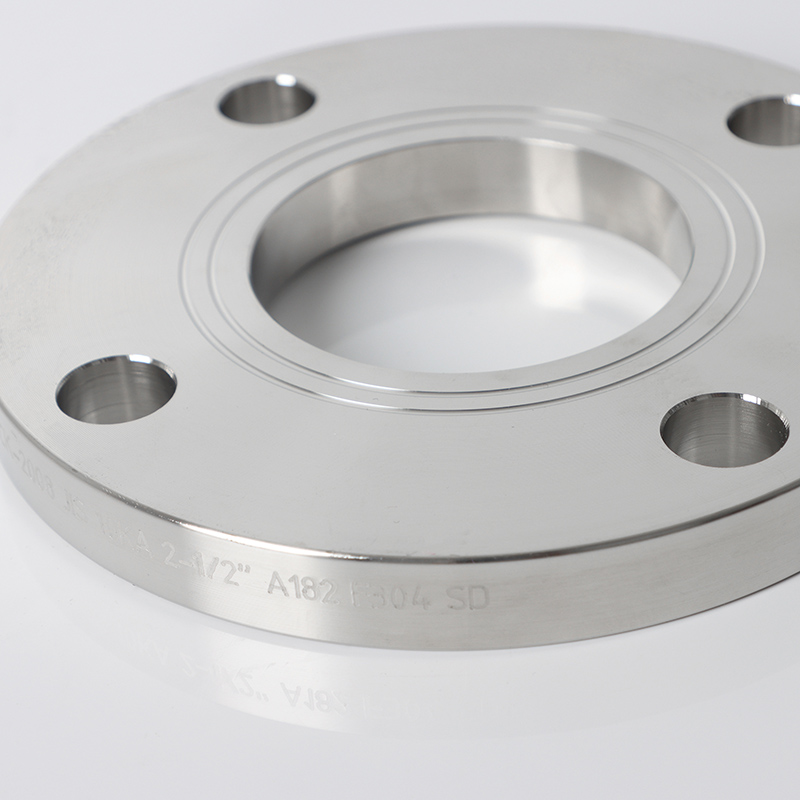

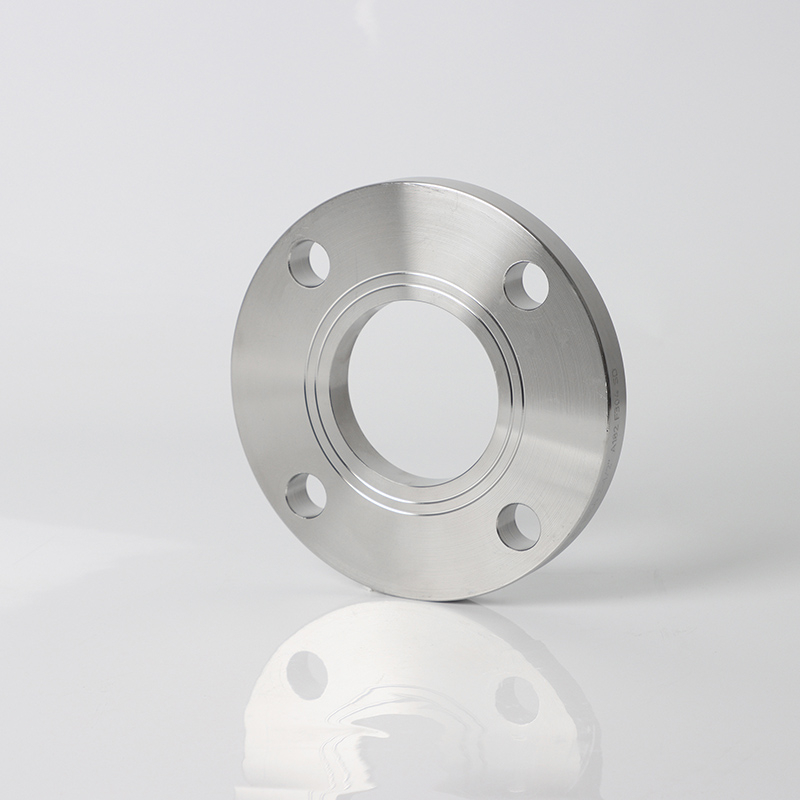

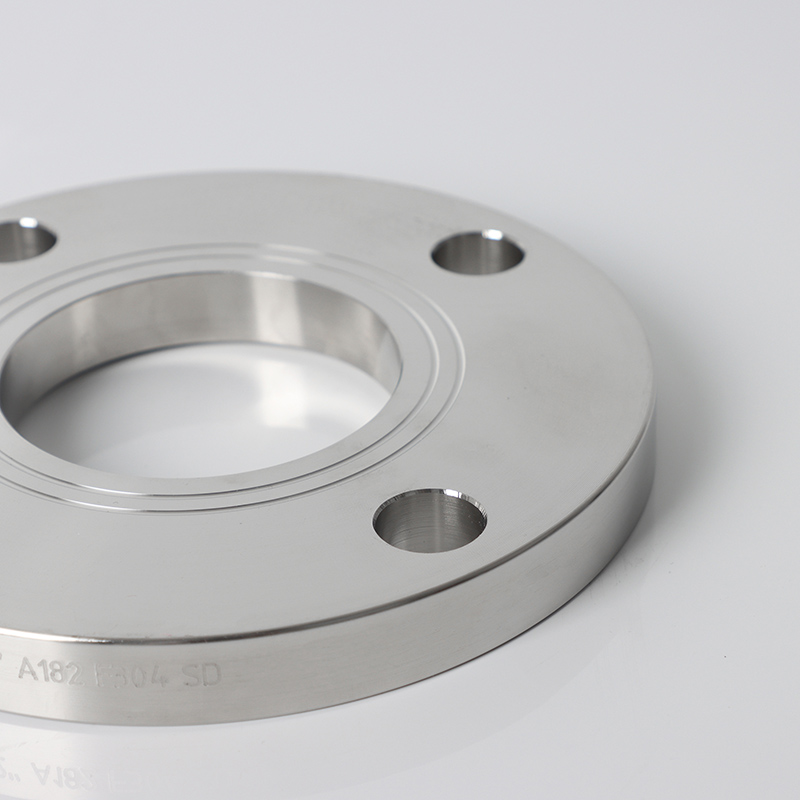

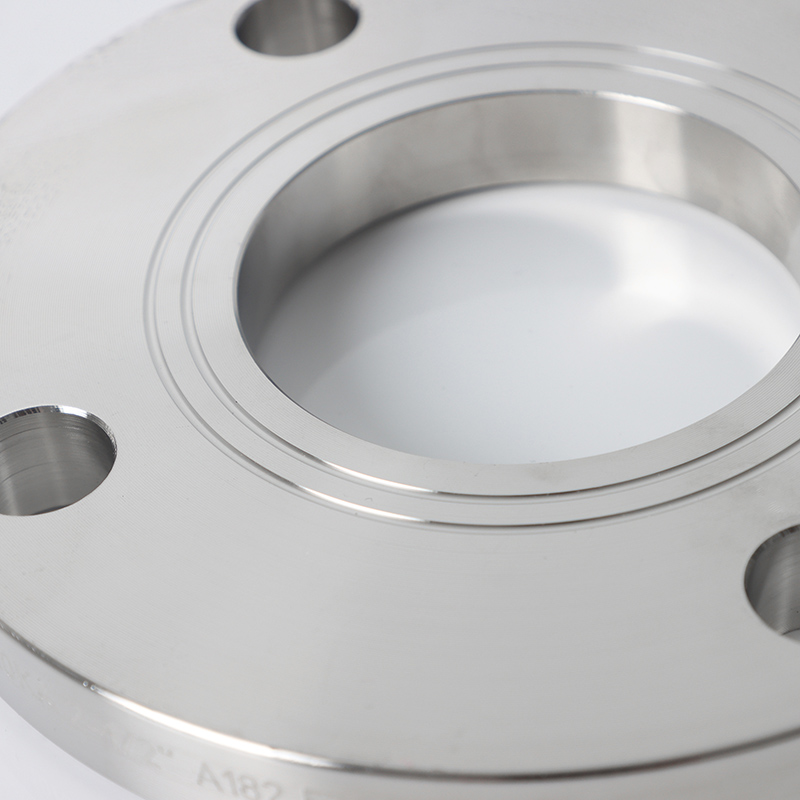

The JIS B2220-2012 SOP Slip-On Plate Flange is a core connecting component for Japanese Industrial Standard (JIS) piping systems, renowned for its cost efficiency and ease of installation. Its plate-type slip-on design allows the flange bore to slide over the pipe exterior, secured by double-sided fillet welding, significantly reducing alignment precision requirements. Compatible with standard pressure ratings (5K, 10K, 16K, 20K) and flat face (FF)/raised face (RF) sealing types, it serves as the preferred connection solution for low-to-medium pressure pipelines with small-to-medium diameters (15A~600A), particularly suited for budget-sensitive projects.
