Standard Instructions
Standard Number: EN 1092-1 (European Flange Standard, corresponding to international standard ISO 7005-1, German standard DIN EN 1092-1)*

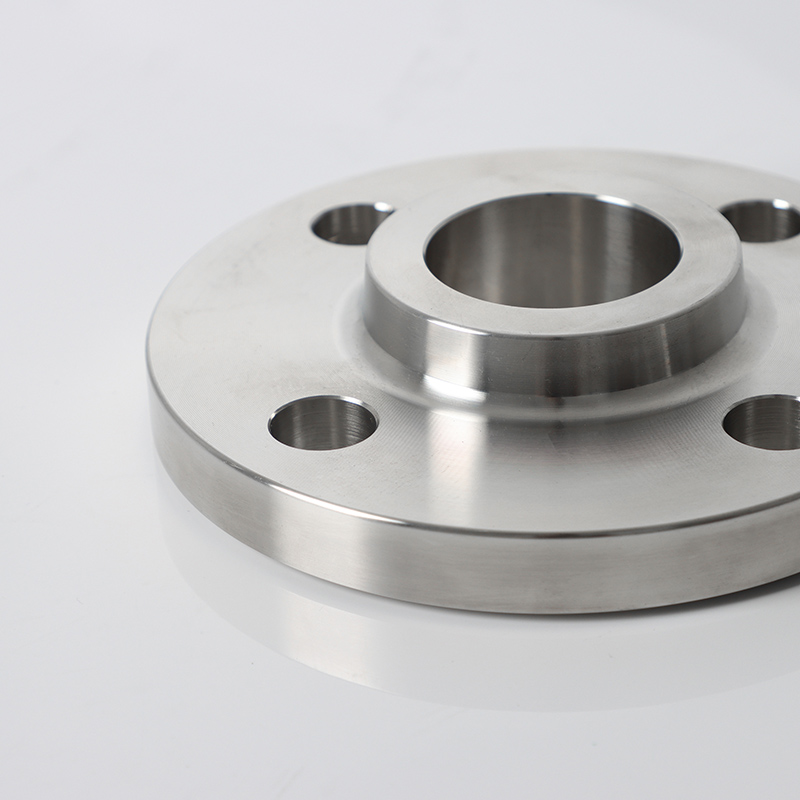

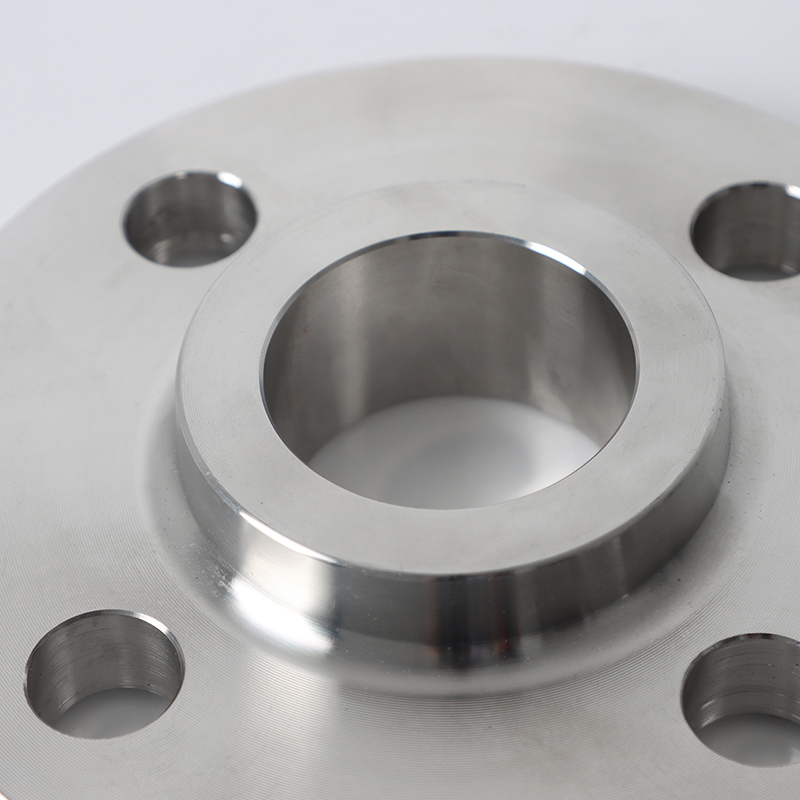

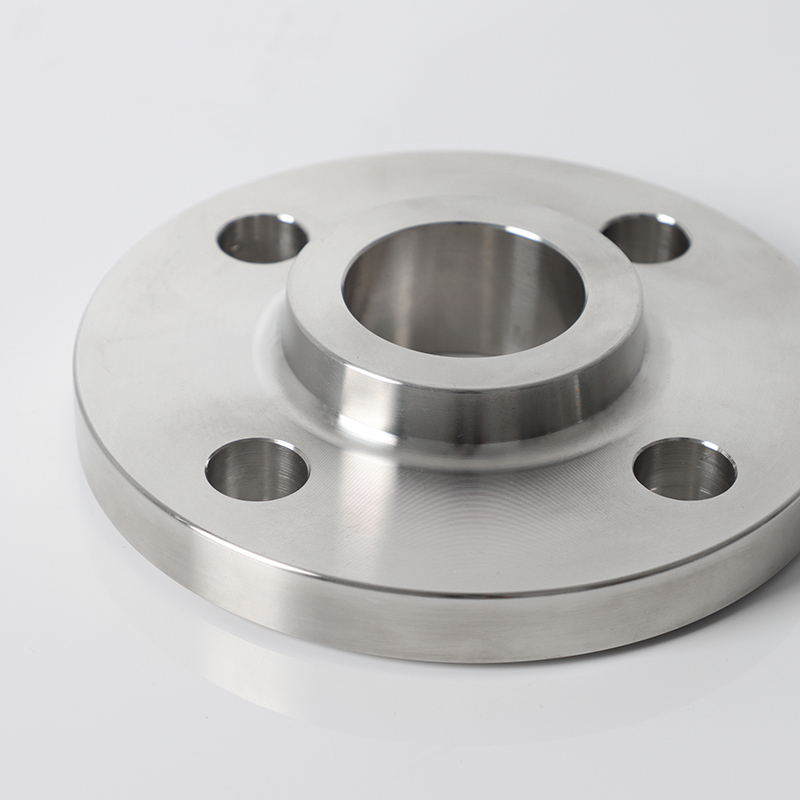

Flange Type: SO (Slip-On) (Slip-on Welding Neck Flange, fixes the pipeline by welding both inside and outside)

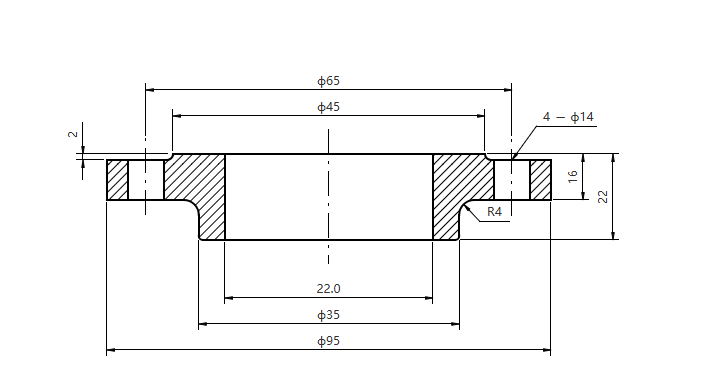

Nominal Diameter (DN): 15 (The inner diameter of the pipeline is approximately 15 mm, and the actual outer diameter varies according to different standards)
Pressure Rating (PN): 10 (Rated pressure is 10 bar, approximately 1 MPa, applicable at normal temperature) Scope of Application
Temperature Range: Depends on the material. For carbon steel, it is usually from -20°C to +300°C (up to 400°C for short periods).
Media: Non-corrosive or weakly corrosive media such as water, steam, oil, gas, etc.
Industries: Chemical, petroleum, pharmaceutical, food processing, HVAC, etc.
