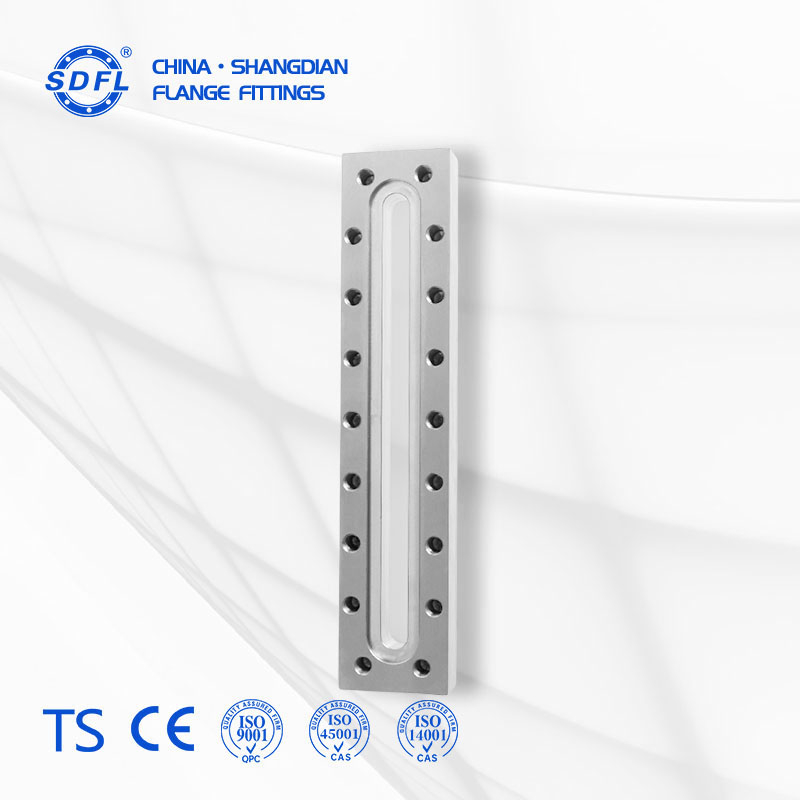

Sight Glass Flange
SDFL
Core Features:
Visual Inspection Port: Integrated high-transparency glass (borosilicate/tempered/quartz) for real-time fluid monitoring.
High-Pressure Sealing: Reliable sealing with high-temp/corrosion-resistant gaskets (PTFE/EPDM/metal-jacketed).
Material Versatility: Compatible with SS 316L, duplex steel, Hastelloy for diverse media.
Safety Design: Explosion-proof glass (EN 12150) and anti-loosening bolts for fail-safe operation.
Sanitary Options: Electropolished surfaces (Ra ≤0.4 μm) & Tri-Clamp connections for sanitary compliance.
Application Scenarios:
Chemical Industry
Reactor Monitoring: Monitor reaction progress, foam/sludge formation in reactors.
Pipeline Flow Inspection: Check flow of corrosive liquids (e.g., H2SO4, HCl) in pipelines.
Pharmaceutical & Biotech
Aseptic Filling Lines: Real-time inspection of liquid fill levels and bubbles (GMP compliant).
Bioreactors: Monitor cell culture/fermentation mixing in bioreactors.
Food & Beverage
Tank Level Inspection: Inspect liquid levels and cleanliness in juice, dairy, or beer tanks.
Clean-in-Place/Sterilize-in-Place: Verify cleaning agent/steam coverage during CIP/SIP cycles.
Energy & Power
Boiler Water Level Check: Ensure safe water levels to prevent dry firing or overflow.
Geothermal Systems: Monitor phase changes (liquid/steam) in high-temperature geothermal fluids.
Water Treatment & Environment
Sedimentation Tank Viewing: Check sludge settling and flocculant distribution.
Desalination Plants: Monitor pre/post-RO membrane pressure and fluid clarity.
Laboratory & Research
High-Pressure Test Rigs:Observe supercritical fluid (e.g., CO₂) behavior.
Microreactors: Study nanoparticle synthesis or catalytic reactions.
Oil & Gas
Separator Interface Detection: Identify oil-water-gas separation interfaces.
Pig Tracking: Confirm pig location during pipeline cleaning.
