304 Stainless Steel Round Tube
SDFL
Availability: Quantity:1 Model: 304 Stainless Steel Round Tube Brand: SDFL
This product is a precision thin-wall round tube made of 304 stainless steel, with an outer diameter range of 2mm to 10mm. It is produced through cold drawing and precision processing, with uniform wall thickness and consistent dimensional parameters. The product is suitable for scenarios that require small-diameter pipeline components and precision structural parts. Below is the full range of pipe fitting specifications produced by the facility:

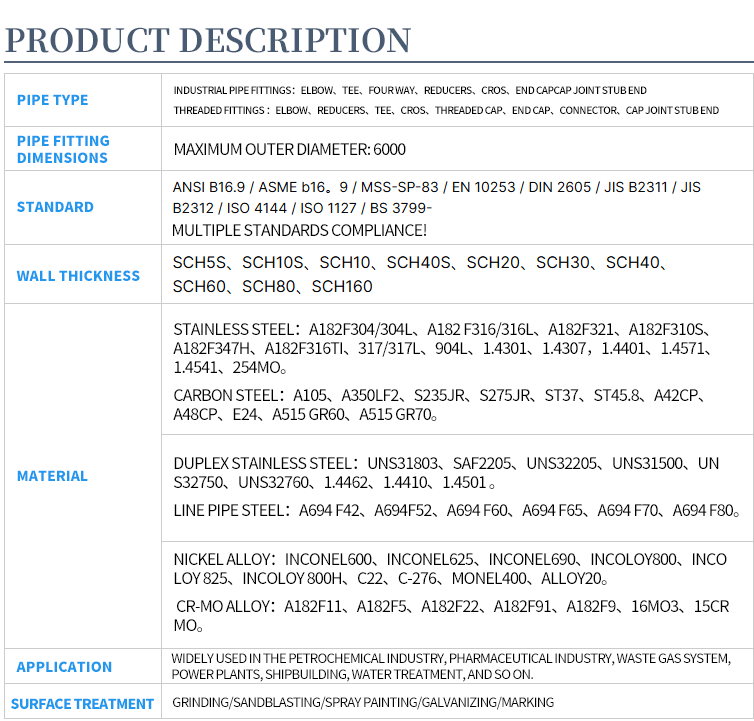

PIPE TYPE | INDUSTRIAL PIPE FITTINGS: ELBOW、TEE、FOURWAY、REDUCERS、CCROS, END CAPCAP JOINT STUB END THREADED FITTINGS: ELBOW、REDUCERS、TEE、CROS、THREADEDCAP、END CAP、CONNECTOR、CAP JOINT STUB END |
PIPE FITTING DIMENSIONS | MAXIMUM OUTER DIAMETER: 6000 |
STANDARD | ANSI B16.9 / ASME b16. 9 / MSS-SP-83 / EN 10253 / DIN 2605 / JIS B:2311 / JIS B2312 / ISO 4144 / ISO 1127 / BS 3799- MULTIPLE STANDARDS COMPLIANCE! |
WALL THICKNESS MATERIAL | SCH5S、SCH10S、SCH10、SCH40S、SCH20、SCH30、SCH40、 SCH60、SCH80、SCH160 |
STAINLESS STEEL: A182F304/304L、A182 F316/316L、A182F321、A1182F310S、 A182F347H、A182F316TI、317/317L、904L、1.4301、1.4307, 1.4401、1.4571、 1.4541、254MO。 CARBON STEEL: A105、A350LF2、S235JR、S275JR、ST37、ST45.8、A42CP、 | |
DUPLEX STAINLESS STEEL:UNS31803、SAF2205、UNS32205、UNS31500、UN S32750、UNS32760、1.4462、1.4410、1.4501。 LINE PIPE STEEL: A694F42、A694F52、A694F60、A694F65、A694F70、A694F80。 | |
NICKEL ALLOY: INCONEL600、 INCONEL625、 INCONEL690、INCOLOY800、INCO LOY825、INCOLOY800H、C22、C-276、MONEL400、ALLOY20o CR-MO ALLOY: A182F11、A182F5、A182F22、A182F91、A182F9、16MO3、.15CR MO。 | |
APPLICATION SURFACE TREATMENT | WIDELY USED IN THE PETROCHEMICAL INDUSTRY, PHARMACEUTICAL INDUSTRRY, WASTE GAS SYSTEM, POWER PLANTS, SHIPBUILDING, WATER TREATMENT, AND SO ON. |
GRINDING/SANDBLASTING/SPRAY PAINTING/GALVANIZING/MARKING | |
For this 2-10mm 304 stainless steel round tube, production follows ISO 1127 and ASTM A269 standards for precision stainless steel tubes, covering dimensional tolerance, material composition, and mechanical performance requirements. Each batch of tubes undergoes material composition testing and dimensional verification before delivery.
The tube is manufactured with 304 stainless steel conforming to ASTM A240 standards. This material contains 18% chromium and 8% nickel, with corrosion resistance suitable for most atmospheric and mild corrosive environments. It also exhibits good toughness and formability, supporting secondary processing such as bending and cutting for industrial applications.
Wall Thickness Schedule | Applicable Outer Diameter Range |
|---|---|
SCH5S | 2mm - 10mm |
SCH10S | 3mm - 10mm |
SCH10 | 4mm - 10mm |
SCH40S | 6mm - 10mm |
The precision processing technology ensures controlled dimensional accuracy of the tube. Under standard production conditions, the outer diameter tolerance is controlled within ±0.05mm for diameters below 6mm, and within ±0.08mm for diameters from 6mm to 10mm. Wall thickness uniformity is maintained within a 10% deviation range, with no visible burrs at the tube ends.
Multiple surface treatment options are available to match different application requirements. The standard bright annealed surface delivers a smooth, clean finish suitable for precision instrument components. Other available treatments include polishing, sandblasting, and passivation. Custom surface finish requirements can be evaluated for commercial procurement orders.
This 2-10mm 304 stainless steel round tube is widely used across precision industrial sectors. In precision machinery and instrumentation, it serves as structural components and small fluid transmission pipelines with strict dimensional requirements. In medical equipment and hardware processing, it adapts to component fabrication that requires corrosion resistance and stable mechanical properties. It also applies to industrial small pipeline systems and DIY project fabrication, supporting cutting and secondary processing according to assembly needs.
For standard production, the outer diameter tolerance is controlled within ±0.05mm for diameters below 6mm and ±0.08mm for diameters from 6mm to 10mm. Tighter tolerance requirements can be discussed for custom orders.
Yes, custom length requirements are supported. Standard stock lengths are available for bulk orders, and custom cutting to specified lengths can be arranged according to project needs.
Available wall thickness schedules include SCH5S, SCH10S, SCH10, and SCH40S within the 2-10mm outer diameter range. Non-standard wall thickness specifications can be evaluated for volume orders.
Standard supply comes with bright annealed surface. Optional treatments include polishing, sandblasting, and passivation. Special surface requirements can be confirmed with the sales team before ordering.
This product supports full customization for commercial procurement, covering length, wall thickness, surface treatment, and special dimensional specifications. Factory-direct supply is available for bulk orders, with stable production capacity and scheduled delivery. Multiple quality inspection documents can be provided with each shipment to match project acceptance requirements. For detailed quotation and technical confirmation, contact the sales team with specific specification requirements.
