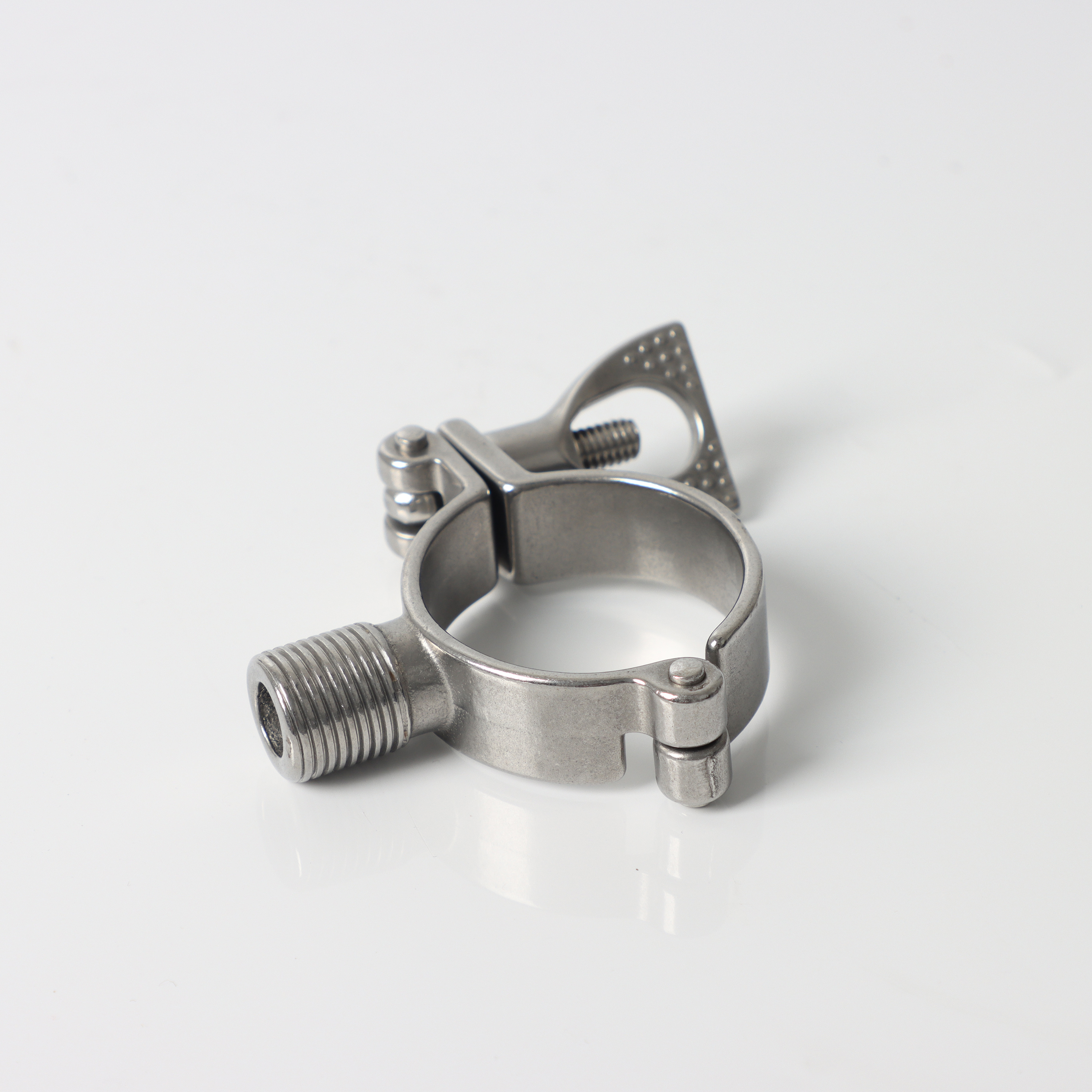

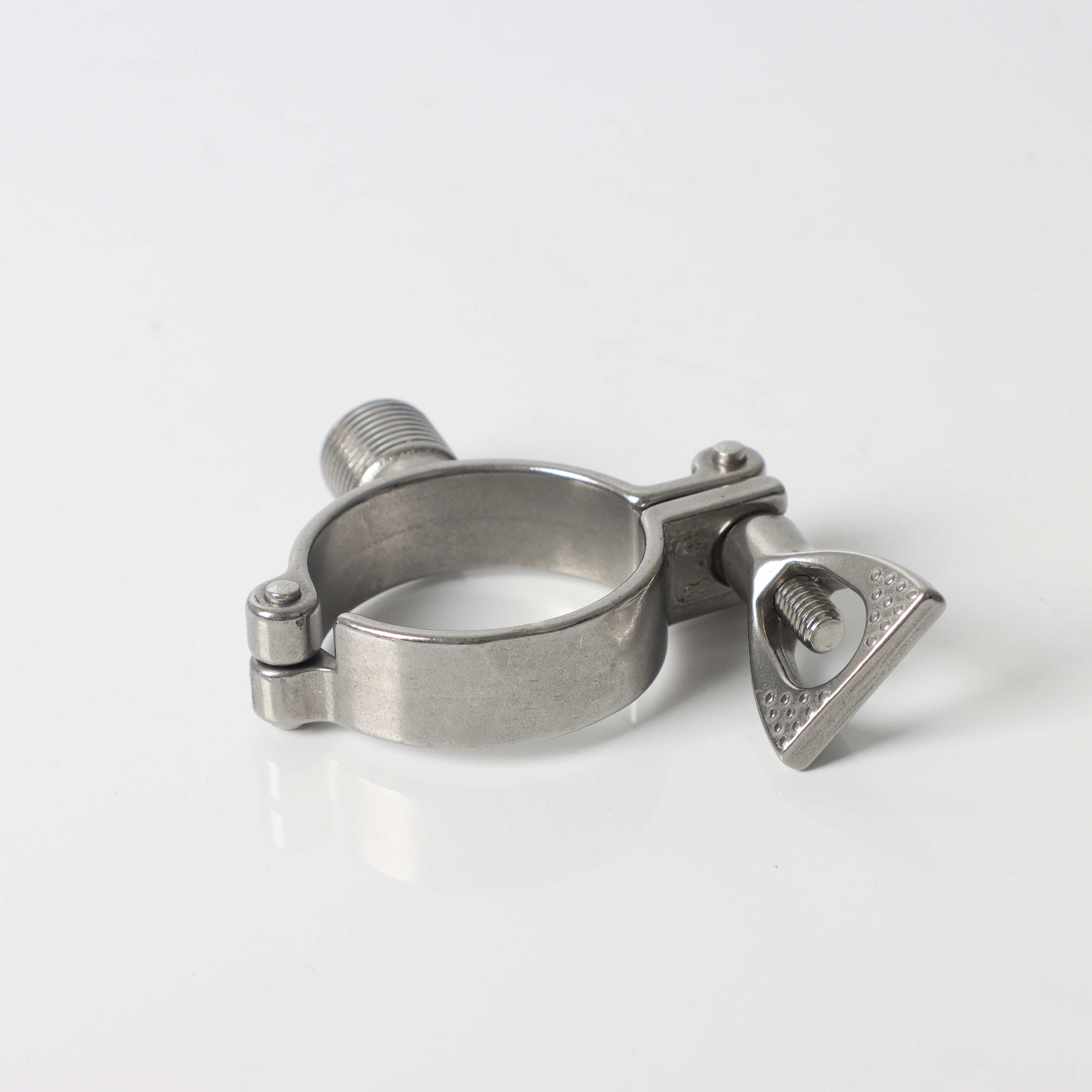

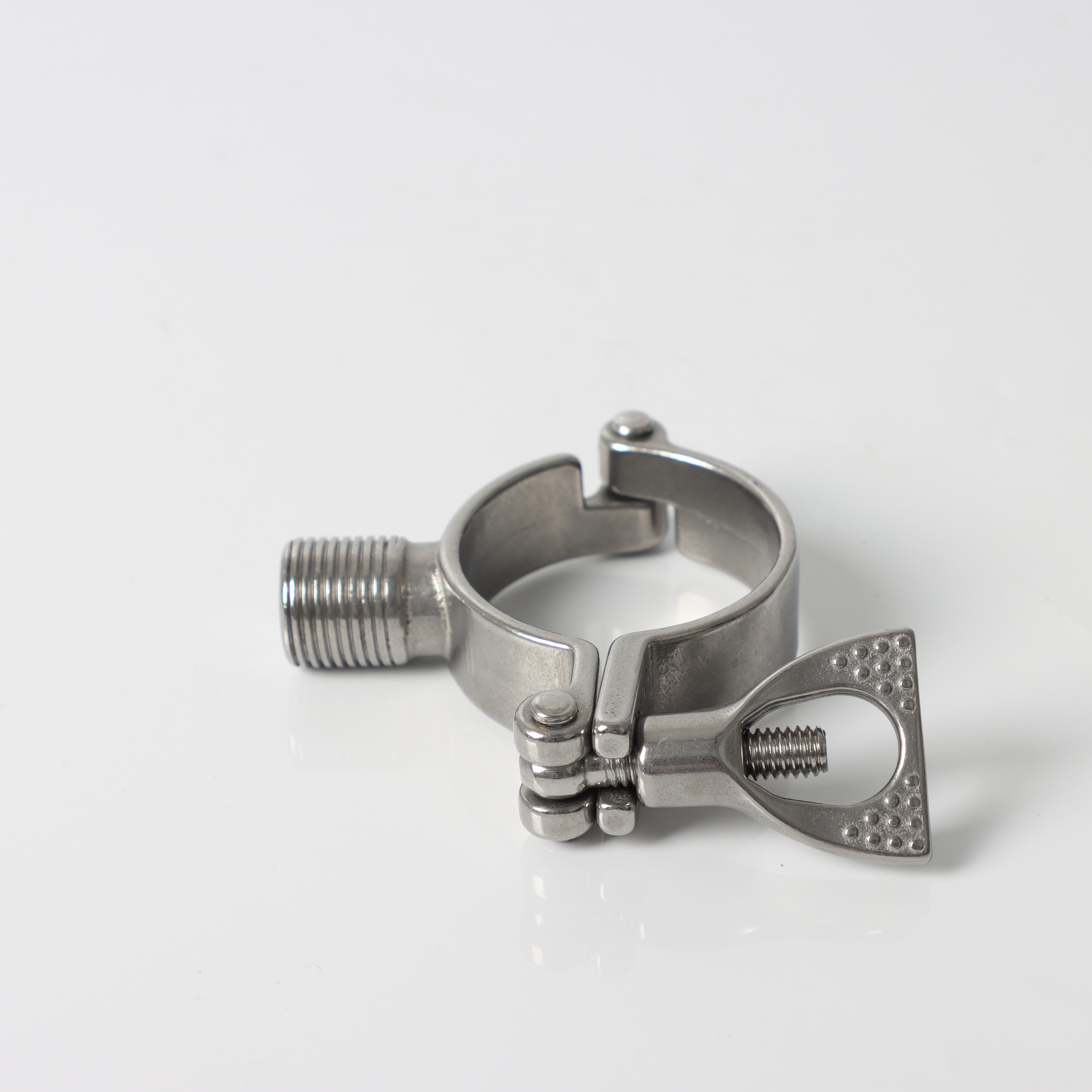

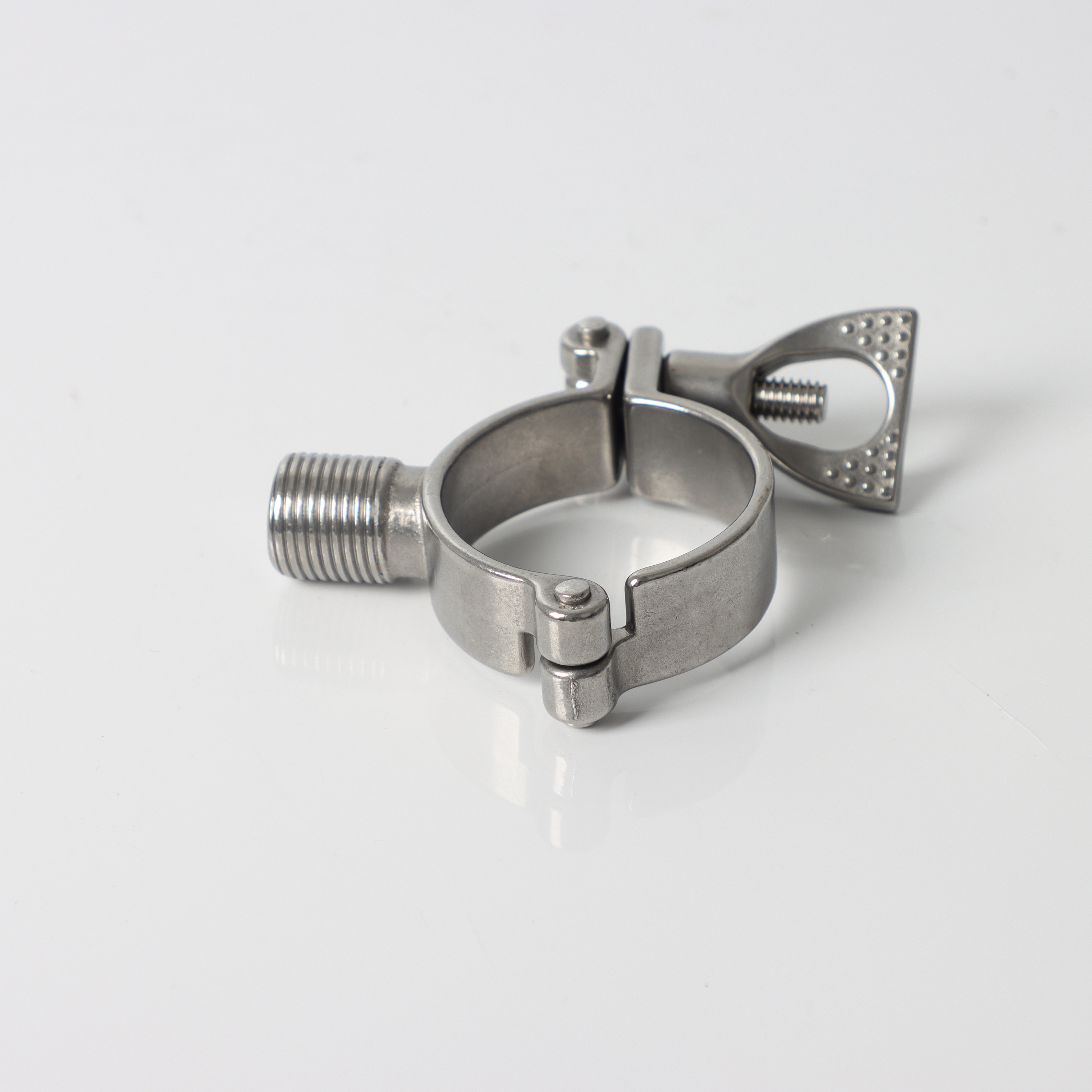

The 304 Stainless Steel Sanitary Threaded Pipe Clamp Bracket is a dedicated pipe fixing component designed for clean fluid systems, integrating support, fixation, and vibration reduction functions. It is suitable for industries with strict hygiene and corrosion resistance requirements such as food, pharmaceutical, dairy, and beverage. Made of high-quality 304 stainless steel raw materials, the product undergoes precision forging and CNC finishing, strictly complying with international sanitary standards including 3A, FDA, and DIN. The inner and outer surfaces are mirror-polished (roughness Ra≤0.8μm), with no hygiene dead corners or residue risks, completely eliminating medium contamination and bacterial growth.
Key performance highlights are prominent: The precision-designed threaded connection structure, combined with high-strength locking bolts, provides strong fixing force and convenient adjustment, enabling quick adaptation to different installation angles and pipe spacings. The pipe clamp is lined with food-grade silicone buffer pads, which not only enhance sealing and anti-slip performance but also avoid damage caused by direct friction between the pipe and the bracket. It also features a wide temperature adaptation range of -20℃~135℃ and a pressure-bearing capacity of 0~1.0MPa, meeting the stable operation requirements of low-pressure clean pipe systems. With a compact structure and light weight, the product does not occupy extra space after installation. The 304 stainless steel material offers excellent corrosion resistance and oxidation resistance, with a service life 3 times longer than ordinary carbon steel brackets, significantly reducing maintenance costs.
