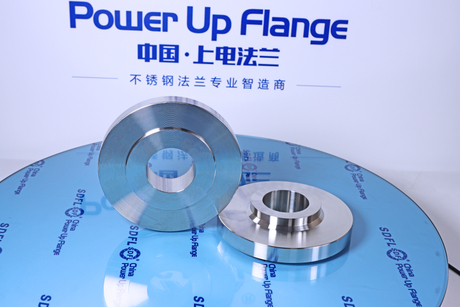

Industrial piping projects face a constant, inherent friction. Engineers demand extreme safety protocols. They require strict ASME and ANSI compliance for high-pressure tolerance. Procurement teams battle tight project budgets and aggressive lead times. We know this tension well. The stakes are massive. Choosing the wrong flange manufacturing method leads to severe consequences. Systems experience catastrophic blowouts or excessive maintenance downtime. Conversely, over-engineering causes unnecessary upfront capital expenditure. We need a rigorous, skeptical approach to evaluate these critical components.
This guide provides an evidence-based evaluation framework. You will move far beyond basic definitions. We help engineers and buyers navigate complex metallurgical realities. You will learn how grain flow directly impacts fatigue strength. You will see where near-net shape production saves crucial time. Ultimately, we empower you to choose the exact right component for your unique operational demands.
Structural Integrity: Forged flanges offer superior tensile and fatigue strength due to uninterrupted grain flow, making them non-negotiable for high-pressure or highly corrosive environments.
Geometric Flexibility: Cast flanges excel in near-net shape production for complex, non-standard geometries where tooling costs for forging would be prohibitive.
Failure Risks: Castings are susceptible to internal voids and hot tearing; forgings demand precise thermal control to avoid hardening cracks.
The Middle Ground: A hybrid approach (investment casting combined with CNC machining) often solves the friction between high initial tooling costs and strict tolerance requirements.
We must explore the raw manufacturing techniques first. These processes dictate the final physical properties of your component entirely. We must thoroughly understand solid-state deformation versus molten crystallization. They yield vastly different structural results.
Forging relies entirely on pure solid-state deformation. The manufacturer never melts the base metal. They heat a solid steel billet to a malleable temperature. Heavy industrial presses then hammer the material. They force it into the desired final shape. This extreme thermomechanical manipulation profoundly alters the internal atomic structure. It creates an exceptionally dense, heavy component.
We call this specific phenomenon the "grain flow" advantage. During the pressing phase, the internal grain structure aligns naturally. The metallic grains follow the exact contour of the forged flange perfectly. This continuous alignment eliminates exposed grain ends. It prevents microscopic weak points entirely. The result is a highly cohesive structure. It contains absolute zero internal shrinkage. You will never find porosity or hidden air pockets inside. The aligned grain flow resists massive mechanical stress. It acts much like the continuous grain found in a sturdy piece of natural hardwood.
Best Practice: Always request material test reports confirming proper grain flow alignment. Misaligned grains severely compromise your structural integrity.
Casting takes an entirely different metallurgical approach. Technicians heat the metal until it reaches a completely molten state. They then pour this volatile liquid into a prepared mold cavity. This method offers a massive "near-net shape" advantage. The mold dictates the final external geometry perfectly. Manufacturers drastically reduce costly post-machining requirements. Complex, asymmetrical shapes emerge easily from the cooled mold.
However, we must face harsh microstructural realities. The melting phase allows free, rapid expansion of the metal lattice. As the liquid metal cools, crystallization occurs rapidly. This internal crystallization happens completely randomly. The final solid crystalline structure is non-directional. It entirely lacks the continuous grain flow seen in a forged component. Furthermore, the cooling process often traps microscopic gases. These escaping gases create tiny internal voids. We must account for this inherent randomness during system engineering.
Common Mistake: Do not assume a visually flawless casting lacks internal porosity. You always need ultrasonic testing for absolute verification.
We must look at hard metallurgical data. Opinions do not prevent pipeline blowouts. Engineering teams rely on rigorous benchmarking. They use this data to ensure absolute system safety across decades of continuous operation.
Independent metallurgical testing provides clear, unbiased guidance. Industry-standard university research reveals massive performance gaps between the two methods. Researchers tested identical carbon steel components under strictly controlled laboratory conditions. The data strongly favors the solid-state forging process.
A typical forged component exhibits roughly 26% higher tensile strength. It handles significantly more pulling force before experiencing structural failure. Furthermore, fatigue strength shows an even larger disparity. The forged unit demonstrates about 37% higher fatigue strength than its cast equivalent. Fatigue strength dictates your operational life cycles. High-vibration environments demand exceptional fatigue resistance. The forged variant delivers a substantially longer operational lifespan under these harsh conditions.
We must carefully distinguish between load types. Many cast flange units handle static compressive loads perfectly well. Gray iron castings easily support heavy, stationary equipment. They absorb downward compression without yielding or cracking.
However, industrial fluid systems rarely remain static. Sudden pressure spikes create dynamic, high-impact stress. Severe water hammer events shock the entire piping infrastructure. Cast iron fails quickly under these dynamic impacts. The random crystalline structure snaps under sudden tension. It lacks the necessary ductility to absorb sudden shocks.
Conversely, forgings exhibit vastly superior shearing resistance. They show significant area reduction before absolute failure. This means they stretch and yield slightly. They do not shatter instantly. Yielding provides a critical visual warning before a catastrophic rupture occurs.
Every manufacturing process carries specific inherent risks. We must evaluate these vulnerabilities objectively. We use this deep evaluation to guide our quality assurance protocols.
Differential Shrinkage: Thick and thin sections cool at different rates. This creates severe internal stress concentration zones.
Hot Tearing Cracks: The metal contracts rapidly while remaining near its melting point. It literally tears apart internally.
Cold Shut Issues: Low pouring temperatures prevent perfect liquid fusion. Distinct metallic layers form a dangerous structural weak point.
Porosity: Trapped atmospheric gases form internal bubbles during rapid solidification.
Uneven Grain Sizes: Improper heating cycles create mixed internal grain structures. This lowers overall yield strength.
Hardening Cracks: Rapid, uncontrolled cooling fractures the dense metal surface abruptly.
Incomplete Fill: Insufficient press pressure leaves the outer geometric edges structurally compromised.
Performance Metric | Forged Flange | Cast Flange |
|---|---|---|
Tensile Strength | Superior (+26% average) | Baseline |
Fatigue Strength | Exceptional (+37% average) | Moderate |
Dynamic Impact Resistance | High (Yields before breaking) | Low (Prone to sudden shattering) |
Internal Material Density | Highly dense, zero voids | Prone to micro-porosity |
Teams often clash over component selection. Engineering prioritizes massive safety margins. Procurement focuses heavily on unit pricing and delivery speed. We created a three-step decision framework to resolve this exact conflict. It aligns both departments efficiently. It removes emotion from the purchasing process.
Filter 1: Pressure Rating & Industry Standards. Evaluate the baseline system requirements first. High-pressure pipelines dictate mandatory forging.
Filter 2: Geometric Complexity & Tooling CapEx. Assess the actual component shape. Complex internal cavities require casting.
Filter 3: Production Volume & Lead Times. Weigh the batch size against tooling costs. High volumes easily amortize forging dies.
We always start directly with pressure ratings. This acts as the ultimate, non-negotiable baseline. High-pressure environments eliminate casting immediately. Mission-critical systems mandate maximum structural density.
Oil and gas pipelines require extreme safety margins. Chemical processing plants handle volatile, highly corrosive fluids daily. These rigorous applications strictly follow ASME and ANSI mandates. You must default strictly to forged components here. They easily survive extreme pressure cycles.
Conversely, low-to-medium pressure systems allow significant flexibility. Non-critical utilities rely heavily on cast iron solutions. Municipal waterworks utilize them extensively for underground mains. Commercial HVAC setups rarely experience severe dynamic shock. These calm environments fully justify a cast iron selection. They safely satisfy the operational requirements without over-engineering.
Next, we thoroughly analyze the tooling cost barrier. Industrial forging requires massive, hardened steel dies. Manufacturers spend weeks milling these custom dies. This tooling capital expenditure (CapEx) is incredibly high. Standard circular piping shapes justify this tooling cost easily.
However, customized designs present a serious financial hurdle. Your design might require intricate internal cavities. You might need highly customized, asymmetrical exterior shapes. Forging these complex geometries is often financially impossible. The custom dies would ruin the entire project budget.
Casting provides total design freedom here. Molds accommodate virtually any internal geometry imaginable. You achieve near-net shape without massive upfront tooling investments. We always choose casting when geometric complexity heavily outweighs raw tensile strength.
Finally, we address the classic manufacturing dilemma. We must carefully balance production volume against lead times. High-volume runs amortize expensive forging dies beautifully. Producing ten thousand standard units reduces the per-unit tooling cost to mere pennies. Mass production favors the heavy forging process heavily.
Small batch runs flip this economic logic completely. Highly customized, low-volume orders cannot absorb massive tooling costs. A custom forging die for fifty units destroys all profit margins. In these specific scenarios, casting protects your margins. Sand casting requires minimal upfront investment. Lead times shrink dramatically. Procurement teams secure parts faster. They protect the overall project timeline efficiently.
Many industrial projects fall into a difficult middle ground. Pure forging remains vastly too expensive. Raw casting lacks the necessary dimensional precision. We need an advanced alternative to bridge this frustrating gap.
Custom, non-standard components constantly frustrate engineers. They require extreme precision on critical sealing faces. Yet, their unique shapes prohibit standard forging dies. The hybrid route solves this exact problem beautifully. It merges near-net shape production with high-precision finishing techniques.
We utilize high-grade alloys for the base component. We often specify ASTM A351 CF8M duplex or robust stainless steel. Manufacturers pour these premium alloys using advanced investment casting. Investment casting provides much tighter initial tolerances than basic sand casting.
Once the component solidifies completely, the secondary phase begins. We utilize advanced CNC precision machining. The CNC lathe meticulously cuts the critical sealing faces. It removes the rough cast exterior perfectly. It reveals a pristine, highly accurate metallic surface.
This hybrid strategy delivers remarkable mechanical results. The CNC process achieves incredibly stringent flatness tolerances. We routinely hit tolerances of ≤0.05 mm on the final sealing face. This guarantees a perfect, leak-proof gasket seal.
Simultaneously, we slash our tooling CapEx aggressively. Producing an investment casting mold costs significantly less than cutting a solid steel forging die. Engineering teams routinely reduce initial mold costs by up to 40%. You achieve custom geometries, tight tolerances, and strict budget compliance. This hybrid method represents true modern manufacturing excellence.
We must finalize our procurement logic securely. Choose your manufacturing method based purely on hard metallurgical data.
Default strictly to solid forgings for critical pipeline integrity and high-pressure zones.
Utilize standard castings for low-pressure utilities and highly complex, non-standard geometries.
Leverage hybrid investment casting for unique shapes demanding exceptionally tight surface tolerances.
Your next step requires immediate action. Audit your piping system's exact pressure ratings today. Consult your engineering team regarding strict flatness requirements. Finally, request a detailed tooling capability analysis from your chosen manufacturer. This action ensures you select the perfect component safely.
A: Look closely at the surface indicators. Cast units typically display faint parting lines from the sand mold. You might also spot minor surface pitting. Conversely, machined forged components show subtle, continuous flow marks. These distinct circular marks stem directly from the automated CNC turning process. They appear perfectly uniform across the entire sealing face.
A: It depends heavily on the specific material grade. Raw cast iron possesses a natural outer skin. This rough skin provides minor inherent corrosion resistance. However, standard forged carbon steel oxidizes quickly. You must specify appropriate stainless grades for wet environments. Alternatively, you can apply robust galvanized coatings. Proper material specification prevents oxidation entirely.
A: You can improve base performance using superior material grades. Switching from standard gray iron to ductile iron adds measurable resilience. However, fundamental microstructural limitations remain permanent. The random crystalline structure inherently lacks maximum density. A casting can never truly replicate the extreme pressure ratings of a solid forged steel component. Extreme stress always requires forging.
