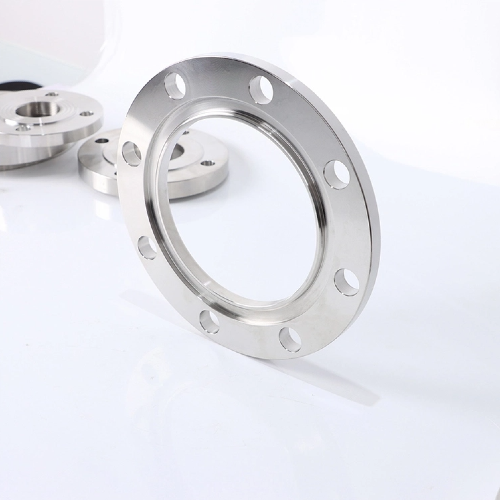

Flanges are essential components in piping systems, ensuring secure connections, leak-proof sealing, and ease of maintenance. Among the various flange types, the integral flange stands out for its single-piece, welded design that offers enhanced strength and durability. Comparing integral flanges with other common flange types helps engineers and project managers make informed decisions for different industrial applications.
This article provides an in-depth comparison between integral flanges and other widely used flange types, including weld neck, slip-on, lap joint, threaded, and plate flanges. The discussion covers design, performance, installation, maintenance, applications, advantages, and limitations.
An integral flange is a one-piece flange that is welded directly to a pipe, creating a seamless and robust connection. Unlike detachable flanges, integral flanges eliminate potential leak points at the joint and provide superior mechanical integrity. Key characteristics include:
Single-piece construction
Direct welding to the pipe
Compatible with high-pressure and high-temperature systems
Available in various materials, including carbon steel, stainless steel, alloy steel, and duplex steel
Integral flanges offer several advantages over traditional flange types:
Enhanced strength and durability due to single-piece construction
Leak-proof performance, even under high-pressure conditions
Reduced maintenance and lower risk of joint failure
Compliance with international standards such as ANSI, ASME, DIN, JIS, and EN
To fully understand the benefits and limitations of integral flanges, it is essential to review other widely used flange types and their unique characteristics. Each flange type has specific advantages, disadvantages, and ideal applications, making it crucial to select the right flange for the intended service conditions.
Weld neck flanges are high-strength flanges with a tapered hub that is welded directly to the pipe. This design allows for smooth stress distribution along the pipe, reducing the likelihood of structural failure and leaks. They are particularly suitable for high-pressure and high-temperature applications, such as steam, oil, or chemical pipelines.
Pros: Excellent stress distribution, highly leak-resistant, ideal for critical and high-pressure applications.
Cons: Higher cost compared to other flange types, longer installation time, and requires skilled welding personnel.
Slip-on flanges are slipped over the pipe and fillet-welded on both the inside and outside surfaces. They are easier to install than weld neck flanges and are cost-effective, especially for low-pressure systems. However, their joint strength is lower, and they may not perform well in high-pressure environments.
Pros: Easy to install, cost-effective, suitable for low-pressure applications.
Cons: Weaker joint strength, potential leakage in high-pressure situations.
Lap joint flanges are used with stub ends, which allows for easy alignment and quick disassembly. They are often used in large-diameter pipelines where maintenance or replacement is frequent. While they offer convenience, they are generally not suitable for high-pressure or critical systems.
Pros: Ideal for frequent disassembly, cost-effective for large pipelines.
Cons: Requires separate stub ends, not suitable for high-pressure applications.
Threaded flanges are screwed onto pipes with matching threads, eliminating the need for welding. This makes them suitable for low-pressure systems where welding may be impractical. However, they have lower strength and are susceptible to leakage under high pressure or temperature.
Pros: Quick installation, no welding required, ideal for temporary or low-pressure setups.
Cons: Lower strength, potential leakage at threads, unsuitable for high-pressure systems.
Plate flanges, also known as flat flanges, are bolted to pipe ends using gaskets for sealing. They have a simple design and are widely used in water and low-pressure systems. However, their pressure capacity is limited, making them less suitable for high-stress or high-temperature environments.
Pros: Simple design, cost-effective, easy to maintain.
Cons: Limited pressure capacity, less suitable for high-temperature or high-stress applications.
Integral flanges generally outperform other flange types in strength, leak prevention, and durability. The following table summarizes key performance metrics:
Flange Type | Pressure Rating | Temperature Range | Leak Resistance | Installation Complexity | Typical Applications |
Integral Flange | High | High | Excellent | Moderate (requires welding) | Oil & gas, chemical, marine, power generation |
Weld Neck Flange | High | High | Excellent | High (skilled welding required) | Critical pipelines, high-pressure systems |
Slip-On Flange | Low to Medium | Low to Medium | Moderate | Low | Low-pressure piping, water, HVAC |
Lap Joint Flange | Low to Medium | Low to Medium | Moderate | Low | Systems requiring frequent disassembly |
Threaded Flange | Low | Low to Medium | Moderate | Low | Temporary or low-pressure installations |
Plate/Flat Flange | Low | Low to Medium | Moderate | Low | Water supply, wastewater, HVAC systems |
Integral flanges excel in applications where mechanical integrity and long-term reliability are crucial. Some key design considerations include:
Stress Distribution: Integral flanges distribute stress along the welded pipe, reducing localized stress points that can lead to leaks.
Material Selection: Integral flanges can be made from a wide range of materials to suit corrosive, high-temperature, or high-pressure environments.
Gasket Compatibility: Integral flanges can accommodate various gasket types, including spiral wound, ring-type joint, and full-face gaskets, ensuring effective sealing.
Other flange types have design limitations that make them less suitable for high-stress applications. For example, slip-on and threaded flanges may deform under high pressure, while plate flanges offer minimal support for heavy-duty pipelines.
Installation: Requires precise alignment and certified welding techniques. Pre-welding preparation, proper torqueing, and inspection are critical.
Maintenance: Minimal maintenance due to robust single-piece design. Routine inspection focuses on weld integrity and corrosion prevention.
Installation is more complex due to tapered hub welding. Requires periodic inspection of welds and bolt tension.
Easier to install with fillet welding but may require more frequent inspection due to weaker joint strength.
Designed for easy disassembly and maintenance, making them ideal for pipelines that require frequent cleaning or modification.
Installation is straightforward, but threads may wear over time, requiring occasional replacement or re-threading.
Simple bolted connection, but gaskets must be checked and replaced regularly to prevent leaks.
Integral flanges are best suited for high-pressure, high-temperature, and corrosive environments. Their robustness makes them ideal for:
Oil & gas pipelines transporting crude oil, natural gas, or refined products
Chemical processing plants handling aggressive media
Marine systems exposed to seawater and high loads
Power generation systems with high-temperature steam or cooling fluids
Other flange types serve specific purposes:
Slip-on and plate flanges are suitable for low-pressure, non-critical applications
Threaded flanges are ideal for temporary or portable installations
Lap joint flanges are preferred where frequent disassembly is required
While integral flanges may have a higher upfront cost due to material and welding requirements, their long-term benefits often justify the investment:
Reduced maintenance and downtime
Lower risk of leaks and failures
Increased pipeline longevity
In contrast, slip-on, plate, or threaded flanges may appear cost-effective initially but can incur higher maintenance costs and potential safety risks in demanding applications.
Feature/Flange Type | Integral | Weld Neck | Slip-On | Lap Joint | Threaded | Plate |
Strength | High | High | Medium | Medium | Low | Low |
Leak Resistance | Excellent | Excellent | Moderate | Moderate | Moderate | Moderate |
Installation Complexity | Moderate | High | Low | Low | Low | Low |
Maintenance | Low | Moderate | Moderate | Low | Moderate | Moderate |
Pressure Handling | High | High | Low-Med | Low-Med | Low | Low |
Temperature Tolerance | High | High | Low-Med | Low-Med | Low-Med | Low-Med |
Application Suitability | Critical | Critical | Non-Critical | Non-Critical | Temporary | Non-Critical |
Integral flanges offer exceptional strength, durability, and leak resistance, making them the preferred choice for demanding industrial applications, including oil & gas, chemical processing, marine engineering, and power generation. While other flange types may provide advantages such as easier installation or disassembly, they cannot match the long-term reliability and robustness of integral flanges. Selecting the right flange type depends on factors like operating pressure, temperature, and maintenance requirements. For professionals seeking high-quality integral flanges and expert guidance, Shangdian Flange Pipe Fittings Co., Ltd. is a trusted partner. Their experienced team can provide tailored solutions, technical support, and reliable products to ensure optimal performance, safety, and cost-efficiency in your piping projects. Contact them today to explore your flange requirements and receive professional advice.
