Flanges play a critical role in piping systems across industries, providing a secure and reliable way to connect pipes, valves, pumps, and other components. Among the many types of flanges available, the plate flat welding flange is one of the most widely used due to its simplicity, cost-effectiveness, and versatility. This article explores the definition, design characteristics, benefits, applications, and comparisons of plate flat welding flanges, offering a comprehensive guide for engineers, buyers, and industry professionals.

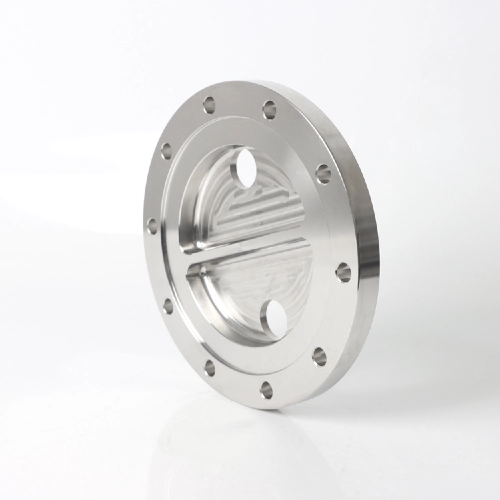

A plate flat welding flange is a type of flange that consists of a flat plate with bolt holes around its circumference. It is welded directly to the pipe, forming a strong and permanent connection. The welding process ensures leak-proof performance and durability, making it an essential choice for low and medium pressure applications.
Unlike other flanges that may feature raised faces, necks, or hubs, the plate flat welding flange has a simple, flat structure. This simplicity reduces manufacturing costs and allows for easy installation, which explains its popularity in industries such as chemical processing, shipbuilding, and water treatment.
In addition, the plate flat welding flange can be customized in thickness, diameter, and bolt-hole configuration, depending on the pipeline design and flow requirements. This flexibility makes it an ideal option for both standard and tailor-made piping projects where cost and time efficiency are key concerns.
The design of a plate flat welding flange is straightforward, yet highly effective. It consists of the following key elements:
The body of the flange is a flat, circular plate, making it lightweight and cost-efficient compared to flanges with more complex designs. The flat surface ensures even distribution of pressure across the gasket area when the flange is bolted, minimizing the risk of leakage.
Holes are drilled around the circumference to allow for bolting with a corresponding flange or component. The number and size of bolt holes depend on international standards such as ANSI, DIN, or JIS. Precise bolt-hole alignment is crucial for maintaining uniform pressure across the joint.
The flange is directly welded to the pipe end. This welding method ensures strong mechanical strength and prevents leakage, especially for pipelines carrying liquids or gases. The weld provides a smooth flow transition, which reduces turbulence and pressure drops within the system.
Plate flat welding flanges can be manufactured from various materials, including:
Carbon steel: economical, widely used in low to medium pressure applications.
Stainless steel: resistant to corrosion, ideal for chemical, food, and marine industries.
Alloy steel: higher strength and temperature resistance, used in specialized projects.
Special materials: such as duplex steel or nickel alloys for highly corrosive or extreme environments.
These flanges are produced according to global standards to ensure compatibility across industries. Common standards include ASME/ANSI B16.5, DIN EN 1092-1, and JIS B2220. Manufacturers can also provide custom sizes for non-standard projects, ensuring full adaptability to customer needs.
The plate flat welding flange provides multiple advantages that make it suitable for a wide range of projects.
Because of their simple design, plate flat welding flanges are more affordable to manufacture compared to complex types such as weld neck or socket weld flanges. This makes them an economical choice for large-scale projects. Bulk orders for water treatment plants, shipbuilding yards, or pipeline installations benefit greatly from the reduced cost per unit.
The flat plate design ensures straightforward welding to pipes. Installation requires less technical expertise and can be performed quickly, reducing project timelines. Contractors often prefer this flange because it minimizes labor costs while still ensuring structural integrity.
Once welded, the flange forms a robust connection that can withstand vibrations, thermal cycles, and mechanical stresses. This reliability is crucial in demanding environments like oil and gas or marine engineering. Proper welding and adherence to standards further extend the service life of the flange.
The welding process minimizes the risk of leaks, ensuring safe and efficient operation of the piping system. This is particularly important in transporting hazardous or pressurized fluids. In industries handling chemicals or hydrocarbons, leak-proof joints are essential to prevent safety hazards and environmental damage.
Available in a variety of sizes, pressure ratings, and materials, plate flat welding flanges can be adapted to meet the specific requirements of different industries. Their adaptability makes them a go-to choice for engineers seeking a reliable yet flexible flange solution.
Plate flat welding flanges are indispensable in many sectors due to their adaptability and performance.
Used in pipelines carrying acids, solvents, and other reactive chemicals, where reliable sealing is critical. Stainless steel plate flat welding flanges are especially popular here, thanks to their corrosion resistance.
Applied in offshore and onshore facilities for connecting pipelines transporting crude oil, natural gas, and refined products. The ability of alloy steel plate flat welding flanges to withstand pressure and temperature variations makes them highly valued in this field.
Essential in piping systems on ships for water, fuel, and exhaust lines, where corrosion resistance and durability are required. Their simple design makes them easy to install in tight spaces on vessels.
Widely used in municipal water distribution, desalination plants, and wastewater treatment facilities due to their cost-effectiveness and reliability. Carbon steel variants are particularly common in these applications.
Installed in cooling systems and steam pipelines in thermal power plants, where they must withstand pressure and high temperatures. The use of alloy or stainless steel ensures long-term durability under continuous operation.
To understand the specific advantages of plate flat welding flanges, it helps to compare them with other common flange types.
Flange Type | Structure Characteristics | Cost | Installation | Applications |
Plate Flat Welding | Flat plate, welded to pipe | Low | Easy | Low to medium pressure systems |
Weld Neck Flange | Long tapered hub, butt-welded | Higher | Complex | High-pressure, high-temperature |
Slip-On Flange | Slips over pipe, fillet welded | Moderate | Easy | Low-pressure, non-critical systems |
Blind Flange | Solid disk, no bore, seals pipe end | Moderate | Easy | Pipe termination or testing |
Socket Weld Flange | Socket for pipe insertion, fillet welded | Moderate | Moderate | Small bore, high-pressure systems |
Plate flat welding flanges are the most cost-effective and easiest to install, ideal for budget-conscious projects.
Weld neck flanges provide superior strength and are suited for extreme conditions but come at a higher cost.
Slip-on flanges are convenient but less robust compared to plate flat welding types.
Blind flanges serve a different function (pipe termination) rather than connection.
Socket weld flanges are stronger than slip-ons but limited to smaller bore sizes.
By analyzing these comparisons, project engineers can make better decisions about which flange type best fits their operational requirements and budget constraints.
The plate flat welding flange is a practical, cost-effective, and reliable solution for connecting pipes in diverse industries. Its simple yet robust design allows for easy installation, leak-proof sealing, and versatility across multiple applications. While it may not offer the same level of strength as weld neck flanges for extreme conditions, its affordability and adaptability make it the preferred choice for many low and medium pressure systems.
For industries seeking high-quality flanges, choosing a trusted manufacturer like Shangdian Flange Pipe Fittings Co., Ltd. ensures compliance with international standards, superior material quality, and reliable performance. Whether for chemical processing, shipbuilding, water treatment, or oil and gas applications, plate flat welding flanges remain a cornerstone of modern piping systems.
