Stainless steel flanges are essential components used in a variety of piping systems, providing strong and reliable connections between pipes, valves, pumps, and other equipment. They are critical in industries ranging from oil and gas to chemical processing, water treatment, and food processing. This comprehensive guide explores everything you need to know about stainless steel flanges, including types, materials, applications, comparisons with carbon steel flanges, and maintenance tips.
Stainless steel flanges are designed for durability, strength, and resistance to corrosion.
They come in various types, each suitable for specific applications such as slip-on, weld neck, blind, threaded, lap joint, socket-weld, and orifice flanges.
Material grades play an important role in selecting the right flange for the job, with different grades offering varying levels of corrosion resistance and strength.
Maintenance practices, including the use of protective coatings and avoiding harsh chemicals, can prolong the lifespan of stainless steel flanges.

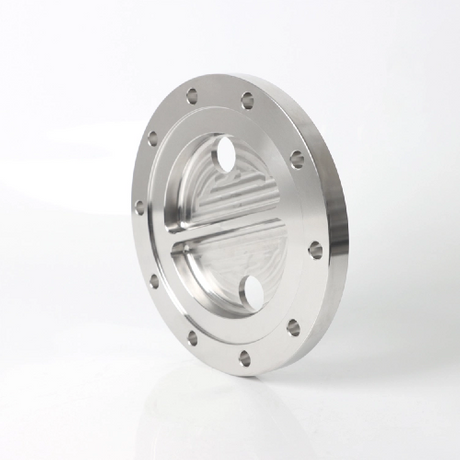

A stainless steel flange is a mechanical component used to join two pipes or pieces of equipment together. They provide a strong seal by bolting the two parts, allowing easy disassembly for maintenance or repair. Stainless steel flanges are preferred in industrial applications because of their resistance to rust, corrosion, and high temperatures. They are commonly used in various systems such as water, gas, oil pipelines, and chemical processing plants.
Flanges come in different sizes and configurations to meet the requirements of specific systems. The stainless steel used in these flanges ensures strength and durability, especially in corrosive or high-pressure environments.
Slip-on flanges are one of the most commonly used flange types. They are designed to slide over the end of the pipe, and once in place, they are welded both inside and outside to ensure a secure fit. These flanges are easy to install and provide a tight seal, making them ideal for systems with lower pressure.
Advantages:
Easy to install and align.
Cost-effective for lower-pressure applications.
Suitable for systems with limited space for welding.
Applications:
Water pipelines
Low-pressure chemical systems
Weld neck flanges have a long tapered neck that is welded to the pipe. This design helps distribute the stresses caused by pressure and temperature changes more evenly across the flange. Weld neck flanges are often used in high-pressure applications where strength and durability are required.
Advantages:
High strength, ideal for high-pressure systems.
Good resistance to stress and vibration.
Reduces the risk of leakage.
Applications:
High-pressure pipelines
Refineries
Chemical processing industries
Blind flanges are used to seal the ends of pipes. They do not have a central opening, which makes them effective for closing off systems. They are commonly used for maintenance purposes or to temporarily block a pipeline during construction.
Advantages:
Prevents leakage by completely sealing the system.
Often used for testing and inspection purposes.
Applications:
End-of-line closures in pipelines
Maintenance systems
Threaded flanges have internal threads that allow them to be screwed onto a pipe without welding. This makes them ideal for situations where welding is not possible. Threaded flanges are generally used in low-pressure applications where ease of installation and disassembly is necessary.
Advantages:
Easy to install and remove.
No welding required.
Suitable for lower-pressure applications.
Applications:
Small-bore pipe systems
Low-pressure applications
Lap joint flanges consist of a flange and a loose backing flange. The lap joint allows for easy installation and alignment, making these flanges ideal for systems where frequent disassembly is required. They also reduce the possibility of corrosion since the flange's inner surface is not exposed.
Advantages:
Easy to align and install.
Reduces the risk of corrosion.
Ideal for systems requiring frequent disassembly.
Applications:
Piping systems with frequent maintenance
Food processing plants
Socket-weld flanges are designed to fit into a pipe and are welded along the inside. These flanges are used in small-diameter pipe systems and offer excellent resistance to pressure and temperature fluctuations.
Advantages:
Strong and secure connection.
High resistance to pressure and temperature.
Ideal for small-bore pipe systems.
Applications:
High-pressure small-diameter pipelines
Chemical and pharmaceutical industries
Orifice flanges are designed specifically for measuring the flow of liquids and gases in pipelines. They have a central opening that can accommodate orifice plates, which help monitor flow rates in various systems.
Advantages:
Used for accurate flow measurement.
Helps in pressure and flow monitoring.
Applications:
Flow monitoring systems
Oil and gas pipelines
Stainless steel flanges come in various grades, each offering different properties for strength, durability, and resistance to corrosion. Some common stainless steel grades used in flanges include:
304 Stainless Steel: The most common grade, offering excellent corrosion resistance in most environments.
316 Stainless Steel: Offers better corrosion resistance than 304, especially in marine and chloride environments.
317 Stainless Steel: Known for its excellent resistance to corrosion and high temperatures.
Duplex Stainless Steel: Combines the best properties of ferritic and austenitic stainless steel, offering enhanced strength and corrosion resistance.
When selecting flanges, it's important to consider whether stainless steel flanges or carbon steel flanges are the better choice for your system.
| Feature | Stainless Steel Flanges | Carbon Steel Flanges |
|---|---|---|
| Corrosion Resistance | Excellent | Poor |
| Strength | High | Moderate |
| Temperature Resistance | High | Moderate |
| Cost | More Expensive | Less Expensive |
Stainless steel flanges are more durable and resistant to corrosion, making them ideal for harsh environments. However, they are more expensive than carbon steel flanges, which are typically used for less corrosive applications where cost is a significant factor.
Stainless steel flanges are used in a wide range of industries, including:
Oil and Gas: Flanges are used to connect pipes in exploration, refining, and transportation.
Chemical and Pharmaceutical: Flanges are used to connect pipes for the transport of chemicals and pharmaceuticals.
Food and Beverage: Stainless steel flanges are commonly used for piping systems in food processing due to their hygienic properties.
Water Treatment: Stainless steel flanges are used to connect pipes in water filtration and treatment systems.
The correct size and dimensions of the flange are essential to ensuring a secure and leak-free connection. It is important to match the flange size with the pipe's diameter.
Choosing the right material grade is crucial to ensure the flange can withstand the system's pressure, temperature, and corrosive properties.
Ensure that the flange meets relevant industry standards, such as ASTM, ASME, or ANSI, and check for certifications from reputable manufacturers.
The gaskets and bolting used with the flange must be of high quality to prevent leaks and ensure a tight seal.
Always choose flanges from reliable manufacturers with a proven track record in quality and performance.
To prevent rust and corrosion, it's essential to apply protective coatings to the stainless steel flanges. This can significantly increase their lifespan, especially in harsh environments.
Avoid exposing stainless steel flanges to harsh chemicals that may damage the material. Always use cleaning agents recommended by the manufacturer.
Stainless steel flanges are vital components in many industries due to their strength, durability, and corrosion resistance. Understanding the different types, material grades, and applications of stainless steel flanges is essential for selecting the right flange for your needs. By maintaining the flanges properly and ensuring they are of high quality, you can ensure long-lasting, reliable performance for your piping systems.
Stainless steel flanges offer better resistance to corrosion and higher strength, making them suitable for harsh environments, while carbon steel flanges are more cost-effective but lack the same corrosion resistance.
The flange size should match the diameter of the pipe it will be connected to. It's also important to consider the pressure rating and material compatibility.
Yes, stainless steel flanges are highly resistant to high temperatures, especially grades like 316 and 317.
To maintain stainless steel flanges, apply protective coatings, avoid harsh chemicals, and inspect regularly for signs of wear or corrosion.
