Flange leaks can often be a nightmare for industrial operations, causing safety risks, environmental issues, and costly downtime. However, these leaks are rarely random. They usually stem from identifiable causes and can be avoided or fixed if you know what to look for. In this guide, we'll walk you through the most common causes of flange leaks, how to diagnose them, and practical fixes to ensure your system operates smoothly.
Leaks can be visible or hidden, and understanding the type of leak is the first step in diagnosing the problem:
External Leaks: These are typically visible and include signs like weeping, spraying, staining, or the formation of salt deposits around the flange.
Internal Leaks: These are harder to detect but can manifest as pressure loss, performance degradation, or contamination in the system.
The timing of the leak can give you valuable insights into its cause:
Immediate Leaks After Installation: Likely caused by improper bolting, misalignment, or incorrect gasket selection.
Leaks That Develop Over Time: These could be caused by thermal cycling, vibration, or gasket material failure.
Leaks During Temperature Fluctuations: Often related to thermal stress, which leads to expansion or contraction of materials, loosening the bolts or gasket.
Flange leaks can escalate into serious issues, so it's important to know when to take immediate action:
When to Shut Down: If the leak is significant and cannot be controlled through normal maintenance, it's best to shut down operations to avoid further damage.
When to Monitor: If the leak is minor and poses no immediate risk, monitor the system and plan for maintenance during the next scheduled downtime.
Incorrect gasket selection or gasket damage is one of the leading causes of flange leaks. Gaskets that are incompatible with the media, temperature, or pressure of the system may fail prematurely. Over time, the gasket material can compress, extrude, or blow out, allowing leaks to occur.
To identify gasket issues:
Visual Inspection: Check for crushing, extrusion, or uneven imprint on the gasket. These are clear signs of gasket failure.
Check Compatibility: Ensure the gasket material is appropriate for the operating conditions, including temperature, pressure, and chemical compatibility.
Choose the Right Gasket: Select a gasket that matches the pressure, temperature, and chemical compatibility requirements of your system.
Gasket Replacement: If you identify damage or wear, replace the gasket with one that fits properly and meets the system's specifications.
Preventive Measure: Always check the flange surface for cleanliness and proper alignment before sealing the gasket.
Bolting is crucial for maintaining flange integrity, and improper bolting practices often lead to leaks:
Incorrect Tightening Sequence: Not following the proper tightening sequence or pattern can result in uneven pressure distribution.
Inconsistent Torque: Using a torque wrench incorrectly or unevenly tightening bolts can cause certain bolts to loosen under pressure.
Leak Patterns: Leaks often occur in a specific pattern around the flange, indicating uneven bolt load.
Torque Check: Inspect the bolts using a torque wrench to ensure they are within the proper torque range.
Proper Bolting Procedure: Use a star pattern to tighten the bolts, starting from the center and working outward. Tighten bolts in multiple stages, gradually increasing the torque.
Consistent Torque: Use a calibrated torque wrench to ensure that all bolts are tightened evenly to the required specification.
Recheck: After initial tightening, recheck torque values after the system has been operational for some time to ensure no loosening occurs.
Thermal cycling causes materials to expand and contract as temperatures fluctuate. This can lead to bolts loosening and gaskets becoming ineffective in sealing the joint. When the temperature increases, the bolts may expand and lose their initial tension, leading to leaks.
Leak Timing: If the leak appears or worsens during temperature changes, it's likely caused by thermal expansion or contraction.
Flange Alignment: Check if the flange faces are misaligned due to thermal distortion, which could cause leaks.
Material Selection: Use materials and alloys that can withstand the thermal expansion and contraction typical in your operating conditions.
Hot Torquing: Consider hot torque methods to tighten bolts at high temperatures to prevent loosening.
Thermal Stress Management: Implement gradual temperature increases and decreases to reduce the impact of thermal cycling on the flanges.
Vibrations from pumps, compressors, and other equipment can put additional stress on flange connections. If not managed properly, these vibrations can cause bolts to loosen, gaskets to fail, and eventually lead to leaks.
Vibration Check: If you notice periodic leaks that coincide with operational cycles, vibrations might be the cause.
Flange Condition: Check for signs of wear or damage due to mechanical stress.
Vibration Dampening: Implement vibration isolation techniques to minimize the impact of vibrations on the flange connections.
Proper Alignment: Ensure that the pipes are properly aligned and supported to prevent additional stresses on the flanges.
Use Locking Hardware: Consider using locking washers or special anti-vibration bolts to prevent loosening during operation.
Flange faces that are damaged, warped, or improperly finished can lead to poor sealing, causing leaks. A warped flange face can prevent the gasket from creating an even seal, while surface imperfections can compromise the integrity of the connection.
Flatness Check: Use a straightedge or feeler gauge to check the flatness of the flange face.
Visual Inspection: Look for scratches, dents, or other imperfections that could prevent the gasket from sealing correctly.
Re-machining: If the flange face is warped or damaged, re-machine the face to ensure it is smooth and flat.
Gasket Selection: Choose a gasket that can accommodate slight imperfections, such as a spiral wound gasket for uneven surfaces.
Protect the Flanges: Use protective covers during storage to prevent damage to the flange faces.
Leak Location: Identify if the leak is external or internal.
Bolting Process: Ensure bolts are properly torqued and check for any loose bolts.
Gasket Condition: Inspect the gasket for damage or wear.
Flange Alignment: Verify proper alignment of the flanges.
Temperature and Pressure: Check operating conditions to see if they could be causing the issue.
Corrective Action: Replace damaged gaskets, re-tighten bolts, or realign the flanges as necessary.
Proper Gasket Selection: Choose the correct gasket material and type based on operating conditions.
Proper Bolting Techniques: Follow proper bolting procedures to ensure even pressure distribution across all bolts.
Clean Surfaces: Ensure flange faces are clean and free from debris before installation.
Regular Inspections: Schedule regular inspections to identify any signs of leaks or damage early.
Re-Torqueing: Periodically check the torque on bolts to ensure they remain tight.
Flange Replacements: If a flange is heavily corroded or damaged, replace it rather than re-machining it multiple times.
RTJ Flanges: Consider upgrading to ring-type joint (RTJ) flanges for high-pressure and high-temperature applications.
Live Loading: Implement live loading hardware in systems with frequent temperature changes.
Flange leaks are usually caused by underlying issues such as improper gasket selection, bolting practices, thermal cycling, or flange face damage. By identifying the root cause and implementing the right corrective actions, you can prevent repeat leaks and ensure the long-term reliability of your piping system.

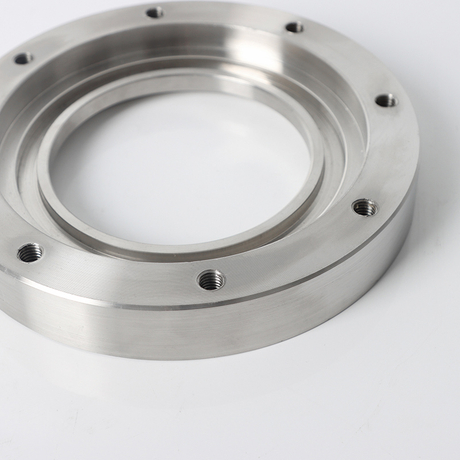

At Shangdian Flange, we specialize in providing high-quality stainless steel flanges and fitting solutions. Whether you need custom sizes, different materials, or technical advice, we are here to help you prevent flange leaks and maintain a robust system. Visit our Stainless Steel Flange product page for more details.
Flange leaks can be caused by incorrect gasket selection, improper bolting, thermal cycling, or flange face damage.
Identify the cause, replace damaged gaskets, properly torque bolts, and ensure proper alignment.
Yes, thermal cycling can cause differential expansion and loosen bolts, leading to leaks.
It could be due to improper gasket material, uneven bolt loading, or flange face damage.
Bolts should be checked regularly, especially after temperature fluctuations or significant vibration.
