In piping systems, flanges play a critical role in ensuring secure connections, leak-proof sealing, and efficient maintenance. Among the many flange types available, the long neck flange stands out for its extended neck design, offering enhanced mechanical strength, alignment, and stress distribution. Proper installation and routine maintenance of long neck flanges are essential to maximize their performance, ensure safety, and prolong the service life of piping systems. With careful planning, material selection, and adherence to best practices, operators can significantly reduce downtime and maintenance costs while enhancing overall system reliability.
This article provides a comprehensive guide to best practices for installing and maintaining long neck flanges, including step-by-step procedures, material considerations, common challenges, and maintenance strategies, enriched with practical insights and expert recommendations.

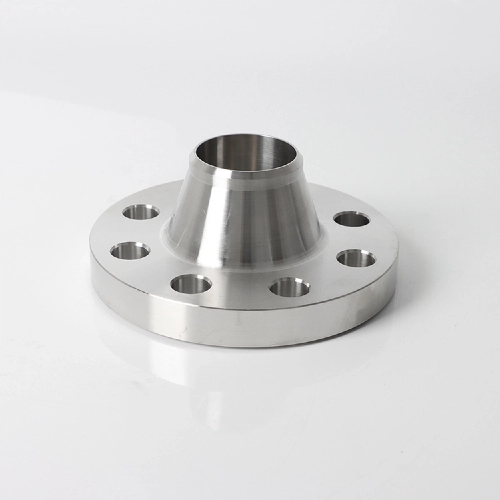

A long neck flange is a specialized flange type with an elongated neck portion that is welded directly to a pipe. The extended neck provides improved mechanical strength at the joint, enhanced stress distribution along the pipe, and precise alignment during installation. This design ensures that forces exerted on the pipe do not directly compromise the flange face, reducing the risk of leaks and structural failures.
Key design features include bolt holes arranged around the circumference, a flat or raised face, and compatibility with a wide range of materials such as carbon steel, stainless steel, alloy steel, and duplex steel. Additionally, the flange neck can vary in length and thickness depending on the application, providing flexibility for high-pressure or high-temperature pipelines.
Long neck flanges are preferred in applications that require medium to high-pressure handling, leak-proof connections for hazardous fluids, compliance with international standards (ANSI, ASME, DIN, JIS, EN), and long service life in industrial pipelines. Their adaptability makes them suitable for both new installations and retrofit projects, where reliability is paramount.
Industry | Typical Use | Additional Notes |
Oil & Gas | Crude oil, natural gas pipelines | High-pressure service requires careful weld inspection |
Chemical | Acidic, alkaline, and solvent lines | Material selection critical for corrosion resistance |
Marine Engineering | Ship fuel, water, and exhaust systems | Exposure to seawater requires protective coatings |
Water Treatment | Municipal water and wastewater pipelines | Regular inspection prevents leaks and contamination |
Power Generation | Steam, cooling, and high-temperature pipelines | High-temperature operation demands heat-resistant materials |
Material and Specification Verification: Ensure the flange material matches the pipe material, meets project specifications, and complies with international standards. Verify pressure ratings, temperature tolerances, and chemical compatibility. Consider potential expansion and contraction due to temperature fluctuations to avoid stress-related failures.
Pipe and Flange Inspection: Conduct a thorough visual inspection of the flange surface for scratches, dents, or deformation. Ensure the pipe ends are clean, straight, and free from rust or scale, as imperfections can compromise weld integrity. Check bolt hole alignment and dimensions for compatibility and ensure all components meet the specified tolerances.
Gasket Selection: Choose the correct gasket type based on flange design and operating conditions, considering factors such as pressure, temperature, and chemical exposure. Verify gasket material is compatible with the transported medium and ensure proper thickness and size for effective sealing. Additionally, consider using high-performance gaskets for high-pressure or corrosive applications to further enhance reliability.
Tool and Equipment Preparation: Prepare all necessary installation tools, including torque wrenches, alignment pins, welding equipment, and inspection instruments. Ensuring that all tools are calibrated and in proper working condition is crucial for accurate installation and long-term performance.
Alignment and Fit-Up: Begin by aligning the flange face with the mating flange accurately. Use alignment pins or temporary bolts if necessary. Ensure the neck is fully seated and not under stress or bending. Misalignment at this stage can result in gasket failure and leaks, so precision is essential. Consider using a laser alignment tool for high-precision pipelines.
Welding: Preheat the pipe and flange ends if required for carbon steel or high-alloy materials. Employ qualified welders following certified procedures. Apply fillet or full-penetration welds depending on project requirements. Conduct post-weld inspection to identify defects such as porosity, cracks, or incomplete fusion. For critical applications, non-destructive testing (NDT) such as radiography or ultrasonic testing can verify weld quality and prevent future failures.
Bolt Installation and Torqueing: Insert bolts and nuts evenly around the flange circumference. Tighten bolts in a star or crisscross pattern to ensure uniform load distribution. Use calibrated torque wrenches and follow manufacturer-recommended torque values. Employ washers or locking devices for vibration-prone pipelines. Consider torque monitoring devices for large industrial systems to maintain consistent tension across all bolts.
Leak Testing: Conduct hydrostatic or pneumatic tests to verify the integrity of the flange connection. Inspect for leaks at weld, gasket, and bolt areas. Address any leaks immediately, re-tightening bolts or replacing gaskets as necessary. Document test results for quality assurance and regulatory compliance.
Step | Key Action | Notes |
Alignment | Align flange faces and bolt holes | Use temporary bolts and precision tools for accuracy |
Welding | Weld neck to pipe using certified methods | Inspect using NDT for critical pipelines |
Bolt Tightening | Tighten bolts in star pattern | Use calibrated torque wrenches; consider torque monitoring devices |
Leak Testing | Hydrostatic/pneumatic testing | Document results and address leaks immediately |
Periodic Inspection: Inspect flanges for corrosion, pitting, or erosion. Check bolts and nuts for proper torque and signs of fatigue. Examine welds for cracks or deformation and inspect gaskets for wear, hardening, or leaks. For critical systems, use advanced inspection techniques like ultrasonic thickness measurement to detect early-stage corrosion.
Cleaning and Corrosion Protection: Remove dirt, scale, or deposits from flange surfaces using non-abrasive methods. Apply anti-corrosion coatings or greases in environments prone to moisture or chemical exposure. For marine or chemical applications, consider sacrificial anodes, specialized coatings, or protective wraps to extend service life.
Lubrication and Bolt Retightening: Periodically lubricate bolts to prevent seizing and corrosion. Retighten bolts following recommended torque patterns, especially after thermal cycling. Replace any worn or damaged bolts, nuts, or washers to maintain connection integrity.
Documentation and Record Keeping: Maintain detailed records of installation, maintenance, and inspection activities. Track service life and replacement schedules for critical components. Ensure compliance with internal quality standards and industry regulations. Well-documented maintenance records help optimize replacement planning and reduce unexpected downtime.
Maintenance Activity | Frequency | Recommended Action |
Visual Inspection | Monthly/Quarterly | Check for corrosion, leaks, and deformation; use advanced inspection techniques for critical pipelines |
Bolt Torque Check | Semi-Annual | Retighten using calibrated torque wrenches; monitor torque for consistency |
Gasket Replacement | As Needed | Replace if signs of wear, hardening, or leakage |
Weld Inspection | Annual | Non-destructive testing for cracks or defects |
Cleaning & Anti-Corrosion | Quarterly/As Required | Remove deposits, apply protective coatings; consider additional protective measures for harsh environments |
Misalignment: Flange faces not properly aligned can cause gasket failure or leaks. Solution: Use alignment tools, temporary bolts, and careful measurement during installation. Laser or digital alignment systems can further enhance precision.
Bolt Loosening: Vibration or thermal cycles can cause bolts to loosen over time. Solution: Employ locking washers, thread-lock compounds, and periodic retightening. Consider monitoring bolt tension electronically in critical pipelines.
Corrosion: Exposure to aggressive chemicals or marine environments accelerates degradation. Solution: Select appropriate flange materials, apply protective coatings, and implement regular inspection schedules.
Weld Defects: Improper welding can result in cracks, porosity, or weak joints. Solution: Follow certified welding procedures, use skilled welders, and conduct thorough post-weld inspection using non-destructive testing techniques.
Thermal Expansion: High-temperature systems can induce expansion and contraction, stressing the flange. Solution: Incorporate expansion joints, allow for controlled movement, and monitor for stress-related deformation.
Proper installation and maintenance of long neck flanges are essential for reliable, leak-proof, and long-lasting piping systems. By ensuring precise alignment, certified welding, correct bolt torqueing, and routine inspection, operators can maximize the performance and durability of their pipelines. Regular cleaning, corrosion protection, and gasket replacement further enhance system reliability, preventing costly downtime and failures.
