Flanges are essential components in piping systems, providing secure connections, leak-proof sealing, and easy maintenance. Among various flange types, the necked flat welding flange stands out as a reliable, cost-effective, and versatile option. This article delves into the advantages of using necked flat welding flanges in piping systems, highlighting their design features, applications, performance benefits, and comparison with other flange types. By the end, engineers, buyers, and industry professionals will gain a comprehensive understanding of why this flange type is favored across multiple sectors.
Before exploring the advantages, it is essential to understand what a necked flat welding flange is.

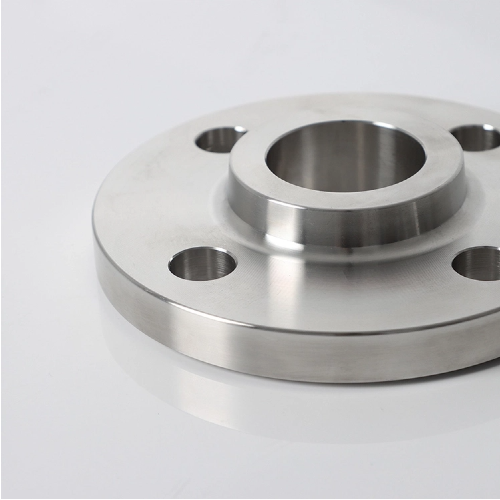

A necked flat welding flange is a type of flange with a flat plate that includes a raised neck designed to be welded directly to a pipe. The neck enhances the mechanical strength of the connection and provides better alignment during installation. This flange type combines the simplicity of flat welding flanges with additional structural support from the neck.
Flat Plate with Neck: The central flat plate is reinforced with a neck that allows welding directly onto the pipe, ensuring a durable connection.
Bolt Hole Configuration: Multiple bolt holes are drilled around the circumference for secure bolting with another flange or component.
Material Options: Commonly manufactured from carbon steel, stainless steel, alloy steel, and special alloys for corrosive or high-temperature applications.
Standards Compliance: Produced according to ANSI, ASME, DIN, JIS, and EN standards, ensuring compatibility and reliability in global projects.
Necked flat welding flanges are widely used in:
Oil & Gas Pipelines: For transporting crude oil, natural gas, and refined products.
Chemical Industry: Pipelines carrying acids, solvents, and reactive chemicals.
Marine Engineering: Ship pipelines for fuel, water, and exhaust systems.
Water Supply and Treatment: Municipal water systems, desalination, and wastewater treatment.
Power Generation: Cooling systems, steam pipelines, and high-temperature applications.
Necked flat welding flanges offer numerous advantages in piping systems that make them a preferred choice in various industrial applications.
The welding neck provides additional structural support, resulting in a stronger joint compared to simple flat welding flanges. When welded correctly, the flange can withstand:
Vibrations and mechanical stress
Thermal expansion and contraction
High-pressure flow conditions
The durability of necked flat welding flanges ensures a longer service life and reduced maintenance costs over time.
One of the most significant advantages of necked flat welding flanges is their ability to maintain leak-proof connections. The direct welding of the neck to the pipe ensures:
Minimal gaps between the flange and the pipe
Resistance to fluid or gas leakage
Safe handling of hazardous materials
This feature is crucial in industries such as chemical processing and oil & gas, where leakage can lead to safety hazards and environmental damage.
Necked flat welding flanges are available in a variety of materials to suit different operating conditions:
Carbon Steel: Cost-effective and suitable for low to medium pressure applications.
Stainless Steel: Provides excellent corrosion resistance, ideal for chemical and marine environments.
Alloy Steel: High strength and heat resistance for specialized applications.
Nickel Alloys and Duplex Steels: Suitable for extremely corrosive or high-temperature environments.
The wide range of materials ensures that necked flat welding flanges can be adapted to almost any industrial requirement.
Despite the enhanced strength provided by the neck, these flanges remain cost-efficient. Their simple design, coupled with reduced installation time, translates to:
Lower manufacturing costs
Less labor-intensive installation
Reduced project timelines
Compared to weld neck flanges for high-pressure applications, necked flat welding flanges offer a balanced combination of strength and economy.
The necked flat welding flange simplifies the alignment process during installation. Its flat plate base and neck support ensure:
Accurate pipe alignment
Simplified bolting procedures
Reduced risk of misalignment and leaks
Moreover, maintenance is easier because these flanges can be disassembled and reassembled without extensive effort, making them suitable for systems requiring periodic inspection.
The combination of strength, leak-proof performance, and material versatility allows necked flat welding flanges to be used in diverse industries. Table 1 illustrates their primary applications:
Industry | Typical Application | Material Preference |
Oil & Gas | Crude oil pipelines, natural gas transport | Carbon steel, Alloy steel |
Chemical | Acids, solvents, reactive chemical pipelines | Stainless steel, Alloy steel |
Shipbuilding & Marine | Fuel, water, and exhaust lines on ships | Stainless steel |
Water Treatment | Municipal water distribution, desalination, wastewater | Carbon steel, Stainless steel |
Power Generation | Cooling systems, steam pipelines | Alloy steel, Carbon steel |
Necked flat welding flanges are manufactured to comply with international standards such as ANSI, ASME, DIN, JIS, and EN. Benefits of standards compliance include:
Compatibility with pipes and components worldwide
Assurance of quality and mechanical integrity
Easier project approval and certification for international projects
To highlight the advantages of necked flat welding flanges, it is helpful to compare them with other flange types.
Flange Type | Structure Characteristics | Cost | Installation Complexity | Applications |
Necked Flat Welding | Flat plate with reinforced neck, welded | Moderate | Easy | Medium pressure pipelines, chemical, water, oil & gas |
Weld Neck Flange | Long tapered hub, butt-welded | High | Complex | High-pressure, high-temperature pipelines |
Slip-On Flange | Slips over pipe, fillet welded | Moderate | Easy | Low-pressure pipelines, non-critical applications |
Blind Flange | Solid disk, no bore | Moderate | Easy | Pipe terminations, testing |
Plate Flat Welding | Flat plate, welded to pipe | Low | Easy | Low to medium pressure systems |
Necked flat welding flanges provide a balance of strength and cost-effectiveness, unlike weld neck flanges which are more expensive.
They are more robust than slip-on flanges while being easier to install than weld neck flanges.
Their versatility makes them suitable for a wide range of industrial applications.
Choosing the appropriate material is critical for maximizing performance and lifespan. Factors to consider include:
Corrosive nature of the medium
Operating pressure and temperature
Project budget and long-term maintenance costs
Proper installation ensures the flange performs optimally:
Ensure clean and smooth pipe ends for welding
Align bolt holes accurately with the mating flange
Use certified welding procedures to maintain mechanical strength
Inspect the welds for defects and perform pressure testing
Routine maintenance and inspection increase reliability:
Periodic checking for signs of corrosion or leakage
Torque bolts to manufacturer-recommended values
Replace gaskets as needed
Conduct hydrostatic or NDT inspections in critical pipelines
Necked flat welding flanges combine the benefits of flat welding flanges with added neck reinforcement, offering superior strength, durability, leak-proof performance, and cost-efficiency. Their versatility and compliance with international standards make them ideal for diverse industrial applications, including oil & gas, chemical processing, marine engineering, water treatment, and power generation.
For engineers and project managers seeking reliable piping solutions, selecting a trusted supplier is essential. Shangdian Flange Pipe Fittings Co., Ltd. provides high-quality necked flat welding flanges with precision manufacturing and strict quality control. Their team can offer expert guidance, custom solutions, and support to ensure your projects achieve maximum efficiency, safety, and long-term performance.
To learn more or discuss your specific requirements, consider reaching out to Shangdian Flange’s experienced team and explore how their products can meet your industrial needs.
